SR泵RS32-12A-2B22-M152-3是RS32-12A-030-C2VY 的升級型號
SR泵RS系列產品參數
Technical Specifications | |
Maximum flow rate: | 100 m3/h |
Maximum head: | 60 mwc |
Maximum pressure: | 8 BAR |
Maximum temperature: | 120° C |
Materials | |
Standard: | AISI 316. |
Hydraulic | Vortex impeller |
SR泵RS系列產品介紹
RS泵的中心距與遵循ISO 5199標準的化學泵的中心距相同，從而確保了簡單的互換性。出口端口的尺寸從?M到DN65。使用葉輪和精密鑄造體以及帶有易于更換的特殊軸的IEC標準電動機（可提供不同的品牌）。由于葉輪的后部位置，較大的球形通道面積可達50毫米。此外，還可以安裝不同類型的密封件：單密封，串聯密封，對置密封或密封密封。
RS泵適用于處理具有晶體懸浮液的化學液體，所有粘性液體，具有高濃度懸浮纖維的液體，民用和工業水處理廠以及所有類型的污泥。它們還用于一般，食品，糖，凈水廠（DAF），廢水處理廠，溶劑回收廠，能源生產廠，冶金，紡織和制革行業。

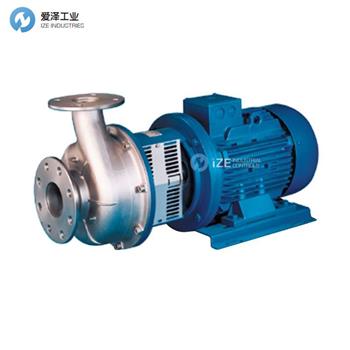

The RS pumps have the same center distance as the chemical pumps that follow the ISO 5199 standard, thus ensuring simple interchangeability. Size of outlet ports from ? M to DN 65. Impellers and micro-cast bodies and IEC standard motors with easily replaceable special shaft are used (different brands available). Large spherical passage area up to 50 mm due to the rear position of the impeller. Furthermore, there is the possibility of mounting different types of seal: single, double in tandem, opposed or gland packing.
RS pumps are suitable for handling chemical liquids with crystalline suspensions, all viscous liquids, liquids with a high concentration of suspended fibers, civil and industrial water treatment plants and all types of sludge. They are also used in the general, food, sugar industry, water purification plants (DAF), waste water treatment plants, solvent recovery plants, energy production plants, metallurgical, textile and tanning industries.
SR泵RS系列其他常見型號：
SR RS32-12A-030-C2VY
SR pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SR泵RS32-12A-2B22-M152-3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
SR泵RS32-12A-2B22-M152-3產品介紹
