MTH PUMPS泵T31系列產品參數
Specification | |
Discharge Pressure | 300 PSI |
Seal Pressure* | 200 PSI |
Suction Pressure (Min.) | 26” Hg Vac. |
Speed** (Max.) | 5500 RPM |
Temperature | |
Standard Construction | -20° F |
Ceramic Seal Seat - Water | +230° F |
Ni-Resist Seal Seat - Water | +230° F |
Horsepower | |
D3 - 1 Phase | 2 HP |
D3 - 3 Phase | 3 HP |

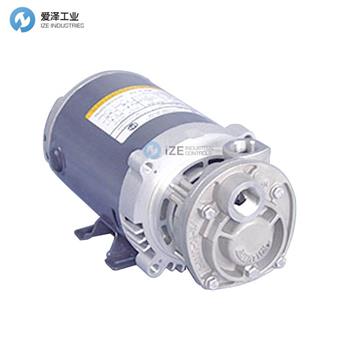

MTH PUMPS泵T31系列產品介紹
MTH泵T31系列緊密耦合再生渦輪泵代表了涉及中壓至高壓（揚程至300英尺）的小流量（1/2至10 GPM）應用的最經濟，高性能的替代產品。通過將水力渦輪泵設計中的最新概念與精密的計算機控制的制造相結合，T31系列泵即使在低NPSH時也能實現高效率的泵送操作。通過將易于維修的設計與使用高品質的組件相結合，可以將維護成本降至最低，從而延長使用壽命。
MTH Pumps T31 Series close-coupled regenerative turbine pumps represent the most economical, high performance alternative for low flow (1/2 to 10 GPM) applications involving moderate to high pressures (heads to 300 feet). By combining the latest concepts in hydraulic turbine pump design with precision computer controlled manufacturing, the T31 Series pumps deliver high efficiency pumping operation, even at low NPSH. Maintenance costs are kept to a minimum by combining an easily serviceable design with the use of high quality components to provide long life.

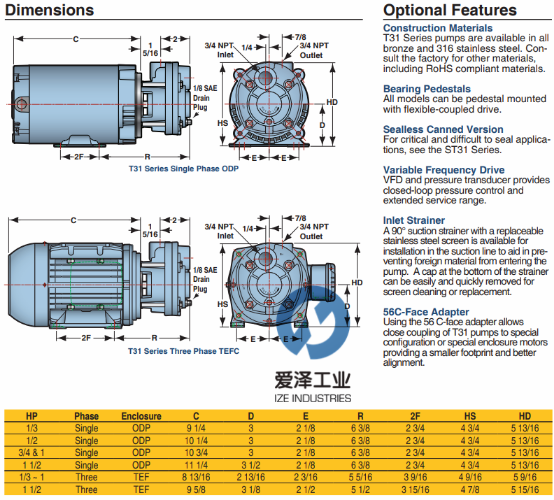

外觀尺寸
MTH PUMPS泵T31E AB其他常見型號：
MTH PUMPS T31A
MTH PUMPS T31B
MTH PUMPS T31C
MTH PUMPS T31D
MTH PUMPS T31F
MTH PUMPS T31G
MTH PUMPS T31H
MTH PUMPS T31C AB
MTH PUMPS T31E AB
