BUSAK+SHAMBAN(B+S) V型圈TWVS01400-N6T50產品參數
Installation Dimensions: | |
For shaft diameter, d1 | 135 - 145 mm |
Inside diameter d | 126.0 mm |
Height of cross section c | 7.0 mm |
Dimensions A | 13.1 mm |
Free Width, B | 18.0 mm |
Maximum, d2 | d1 + 4 mm |
Minimum, d3 | d1 + 21 mm |
Fitted width, B1 | 15.5 ±1.5 mm |

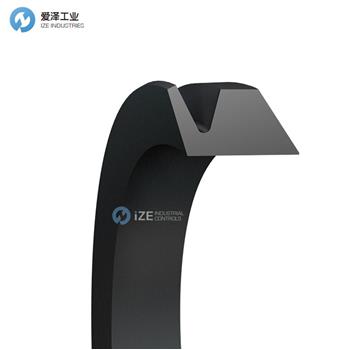

BUSAK+SHAMBAN(B+S) V型圈產品介紹
V型圈是完美的密封件，可防止污垢，灰塵，水或這些介質的結合進入，同時又能有效保留油脂。
VRing具有獨特的設計和性能，可用于多種軸承類型。它也可以用作輔助密封件，以保護在惡劣環境下無法正常工作的主要密封件。
The V-Ring is the perfect seal to prevent the ingress of dirt, dust, water or combinations of these media while positively retaining grease.
With its unique design and performance the VRing can be used with a wide range of bearing types. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.
BUSAK+SHAMBAN(B+S) V型圈TWVS系列其他常見型號：
BUSAK+SHAMBAN TWVS00220-N6T50
BUSAK+SHAMBAN TWVS00250-N6T50
BUSAK+SHAMBAN TWVS00250-VDT50
BUSAK+SHAMBAN TWVS00280-N6T50
BUSAK+SHAMBAN TWVS00300-N6T50
BUSAK+SHAMBAN TWVS00320-N6T50
BUSAK+SHAMBAN TWVS00350-N6T50
BUSAK+SHAMBAN TWVS00380-N6T50
BUSAK+SHAMBAN TWVS00400-N6T50
BUSAK+SHAMBAN TWVS00400-VDT50
BUSAK+SHAMBAN TWVS00450-N6T50
BUSAK+SHAMBAN TWVS00450-VDT50
