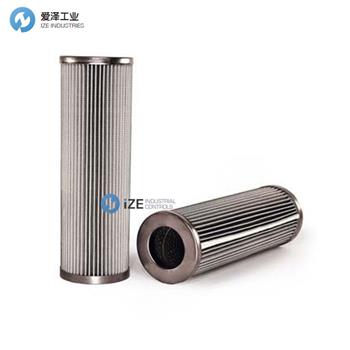

MAHLE濾芯77645625 852621SM-L產品參數
Specification | |
Separation | |
Mic | 10 μm |
Sm-L | 3 μm |
Mol | oil mist |
Temperature range | -30 °C to +100 °C(other temperature ranges on request) |
Housing materia | |
Pi 0101 to Pi 0126 | polyamide |
Pi 0140 to Pi 0142 | galvanized sheet metal |
Pi 0145 to Pi 0149 | polyamide |
Pi 0152 to Pi 0154 | galvanized sheet metal |
Pi 0182 to Pi 0185 | steel/Al |
Sealing material | |
Pi 0126 | rubberized cork |
Pi 0140 to Pi 0185 | NBR |
Resistance | all hydraulic oils |
MAHLE濾芯77645625 852621SM-L產品介紹
Pi 0101至Pi 0126通氣過濾器的外殼由非腐蝕性材料制成。
進氣口位于上部，可防止表面灰塵從油箱頂部吸入。蓋子的設計可防止飛濺的水進入。一次性的打褶元件可以在幾秒鐘內更換。
Pi 0140至Pi 0185通氣過濾器的外殼由鍍鋅金屬制成。內置的O形圈可在儲罐連接處提供準確的密封。通過選擇麥克風或Sm-L元素，滿足了CETOP RP 98 H的要求。它們?yōu)橥膺^濾器指定了與系統過濾器相同的過濾度。
分子元素可防止油霧從油箱中溢出。油霧凝結，在打褶的聚結器層內形成液滴，然后將其返回油箱。
過濾器通過螺紋，夾子或法蘭固定。
The Pi 0101 through Pi 0126 breather filters have housings made of non-corrosive material.
The air intake is located in the upper section, this prevents surface dust to be drawn in from the tank top. The cover is designed to prevent entry of splash-water. The disposable, pleated elements can be replaced in a matter of seconds.
The Pi 0140 through Pi 0185 breather filters have a housing made of galvanized sheet metal. The built-in o-ring provides accurate sealing at the tank connection. With the choice of Mic or Sm-L elements the CETOP RP 98 H requirements are fullfilled. These specify the same filtration degree for the breather filter as the system filter utilizes.
Mol-elements prevent oil mist from emerging the tank. The oil mist coagulate, forming drops within the pleated coalescer layer, which are returned to the tank.
Filters are fixed by threads, clamps or flanges.
MAHLE濾芯77645625 852621SM-L其他常見型號：
MAHLE 77687692 852 514 Mic
MAHLE 77643562 852 514 Sm-L
MAHLE 77687692 852 514 Mic
MAHLE 77643562 852 514 Sm-L
MAHLE 77687643 852 507 Mic
MAHLE 77643547 852 507 Sm-L
MAHLE 77645625 852 621 SM-L
MAHLE 77687643 852 507 Mic
MAHLE 77643547 852 507 Sm-L
MAHLE 77687643 852 507 Mic
MAHLE 77643547 852 507 Sm-L
MAHLE 77687643 852 507 Mic
MAHLE filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAHLE濾芯77645625 852621SM-L的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAHLE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
