MAXITROL過濾器HF2000系列描述
Specifications | |
Pipe Sizes | 1/2” to 2” threaded connections with NPT or ISO7-1 threads. |
Housing MateriaL | GF40, GF60, GF80: aluminum. |
Filter Mat Material | Polypropylene fleece |
Mounting Position | . Suitable for multi-positional mounting, preferably with lid facing down or to the side to facilitate removal of debris during maintenance. |
NOTE:All Maxitrol gas filters should be installed and operated in accordance with | |
Approvals | CE |
Construction and Design | Function according to DIN 3386, Gas Appliances Regulation 2016/426/EU and Pressure |
Gas Types | Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, LP gas-air mixtures, sewer gas, and air |
Pressure Tap Connector | Optional: Pressure tap (PF10) connections inlet and/or outlet side |
Maximum Inlet Pressure | 60 psi (400 kPa) |
Maximum Pressure Drop | 1 kPa (10 mbar) (from this value, the filter mat must be changed). |
Ambient Temperature Ranges | -4 to 175°F (-20 to 80°C) |
Storage and Transport Temp | -58 to 175°F (-50 to 80°C) |
Filter Replacement | GF40 Models: KIT-GF40 |

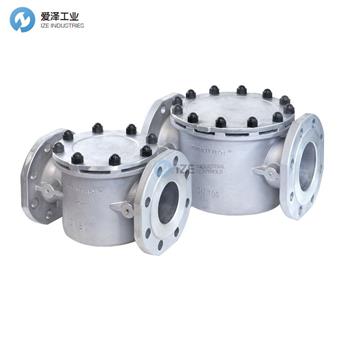

MAXITROL過濾器HF2000系列介紹
Gas and Air Filters
Gas and air filters protect downstream controls (regulators, automatic shut-off valves) from particulate contamination. Recommended for use upstream of fittings, regulators, and controls. Applications for the residential, commercial cooking, process heating, and industrial burner industries. The unique filter mat material will not allow particle infiltration over 0.05mm (50 microns).
氣體和空氣過濾器
氣體和空氣過濾器可保護下游控制裝置（調節器，自動關閉閥）免受顆粒污染。建議用于配件，調節器和控件的上游。應用于住宅，商業烹飪，過程加熱和工業燃燒器行業。獨特的濾墊材料將不允許顆粒滲透超過0.05毫米（50微米）。
Pipe Sizes:
Rp ? to Rp 2 threaded connections according to EN 10226–1 / ISO 7–1
DN25 to DN150 flanged connections according to ISO 7005–2, PN 16
Housing Material: Aluminum
Internal Components Material: Aluminium, elastomer, polypropylene fleece, galvanized wire mesh
Filter Insert: Particulate contamination that equals or exceeds 50 μm
Mounting: Suitable for multi-positional mounting, preferably with lid facing down or to the side to facilitate removal of debris during maintenance.
Construction and Design/Certifications: Function according to DIN 3386, Gas Appliances Regulation 2016/426/EU and Pressure Equipment Directive 97/23/EEC
Gas Types: Gas family 1, 2, and 3 according to EN 437
Pressure Tap Connector: Optional, inlet and/or outlet side
Maximum Inlet Pressure: 100 kPa, 400 kPa, 600 kPa
Ambient Temperature Range: ?20 to 80 °C
Storage and Transport Temperature: ?50 to 80 °C
HF2000系列
管道尺寸：
Rp?至Rp 2螺紋連接，符合EN 10226–1 / ISO 7–1
DN25至DN150法蘭連接，符合ISO 7005–2，PN 16
外殼材料：鋁
內部組件材料：鋁，彈性體，聚丙烯絨，鍍鋅鐵絲網
濾芯：顆粒污染物等于或超過50μm
安裝：適用于多位置安裝，最好蓋朝下或側面朝下，以便于在維護過程中清除碎屑。
結構和設計/認證：符合DIN 3386，燃?xì)馄骶叻ㄒ?guī)2016/426 / EU和壓力設備指令97/23 / EEC的功能
氣體類型：符合EN 437的氣體系列1、2和3
壓力龍頭連接器：可選，入口和/或出口側
最高進氣壓力：100 kPa，400 kPa，600 kPa
環境溫度范圍：?20至80°C
儲存和運輸溫度：?50至80°C
MAXITROL過濾器HF2000系列其他型號：
MAXITROL GF40M-44
MAXITROL GF60M-66
MAXITROL GF60M-88
MAXITROL GF80M-1010
MAXITROL GF80M-1212
MAXITROL GF80M-1616
MAXITROL KIT-GF40M
MAXITROL KIT-GF60M
MAXITROL KIT-GF80M
MAXITROL Pressure regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
