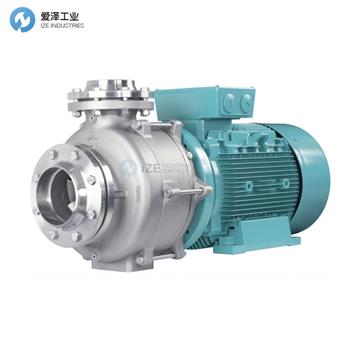

EDUR泵NUBXS80-160 E158L/BG132技術參數
Technical specification | |
Pump type: | NON SELFPRIMING, HORIZONTAL, UNIT CONSTRUCTION TYPE |
Execution: | IN SINGLE PARTS |
Material execution: | ALL IRON |
Counter flanges : | WITHOUT |
OPERATING DATA | |
Pump liquid without solids and non-aggressive to material of construction: | DOWCLENE 1601 |
Temperature [°C] : | 80,0 ... 100,0 |
Density [kg/m3]: | 880 |
Kinematic viscosity [mm2/s]: | < 1,0 |
Rate of flow Q [m3/h] : | 60,0 |
Head H [m]: | 29,2 |
Pump power input P [kW]: | 5,49 |
Speed n [1/min]: approx. | 2.9 |
Required inflow at inlet branch Hs [m]: | 4,0 |
Maximum allowable working pressure pmax [bar]: | 10,0 |
NPSHR [m]: | 3,5 |
MATERIAL OF CONSTRUCTION | |
Casing: | EN-GJL-250 |
Impeller: | EN-GJL-250 |
Shaft: | 1.4057 |
O-Ring: | FPM |
Shaft sealing: | MECHANICAL SEAL 433.6484 WITH SET OUT |
Sealing material: | DEVICE FOR VACUUM OPERATION 100 MBAR ABS. |
Inlet branch: | Q2/Q2/K |
Outlet branch: | DN100/PN16/DIN EN 1092-2 |
Number of stages: | DN80/PN16/DIN EN 1092-2 |
Rotation: | CCW |
Pump driver | Without motor |
EDUR泵NUB系列其他常用型號：
EDUR NUBXS80-160 E158L/BG132
EDUR NUBXS 80-160 E158L8
EDUR NUB800N210H-2900
EDUR NUB800N210H-2900
EDUR NUB800N232-1450
EDUR NUB800N232-1450
EDUR NUB300A117-2900
EDUR NUB300A117-2900
EDUR NUB32-160/C115-2900
EDUR NUB32-160/C115-2900
EDUR PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EDUR泵NUBXS80-160 E158L/BG132的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EDUR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
