BUSAK+SHAMBAN(B+S)格萊圈RG4301000-T46N產品參數
Specification | |
Rod Dia dNf8/h9 | 100.0 |
Groove Dia. D1H9 | 115.1 |
Groove Width L1+0.2 | 6.3 |
O-Ring Size | 107.32*5.33 |
BUSAK+SHAMBAN(B+S)格萊圈RG4301000-T46N產品介紹
Turcon-Glyd環是一種非常有效和可靠的低摩擦密封。它特別適用于高壓和低壓系統中的桿密封。
雙作用Glyd Ring是基于Turcon的滑靴密封和通電O型環的組合。它具有過盈配合，配合O形圈的擠壓，即使在低壓下也能保證良好的密封效果。在較高的系統壓力下，O形密封圈由流體通電，以更大的力將Glyd Ring推向密封面。

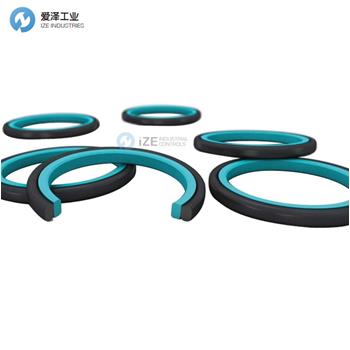

Turcon Glyd Ring is a very effective and reliable low friction seal. It is particularly suitable as a rod seal in both high and low pressure systems.
The double-acting Glyd Ring?is a combination of a Turcon?based slipper seal and an energizing O-Ring. It has an interference fit which together with the squeeze of the O-Ring ensures a good sealing effect even at low pressure. At higher system pressures, the O-Ring is energized by the fluid, pushing Glyd Ring?against the sealing face with increased force.

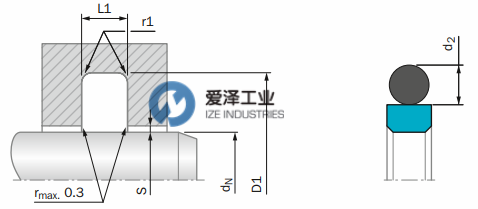

外觀尺寸

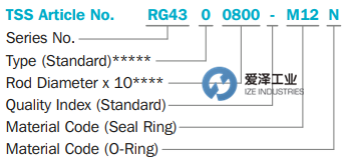

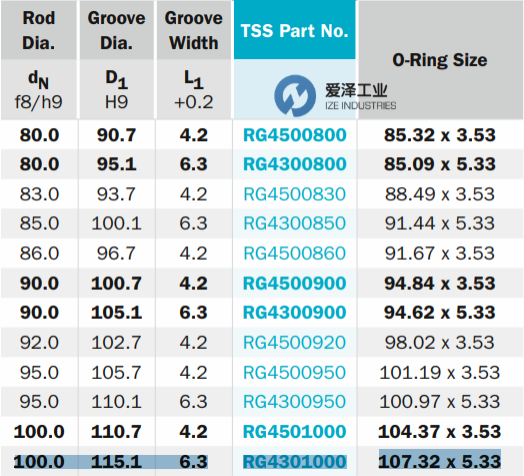

選型參考
BUSAK+SHAMBAN(B+S)格萊圈RG系列其他常見型號：
BUSAK+SHAMBAN(B+S) RG4500800
BUSAK+SHAMBAN(B+S) RG4300800
BUSAK+SHAMBAN(B+S) RG4500830
BUSAK+SHAMBAN(B+S) RG4300850
BUSAK+SHAMBAN(B+S) RG4500860
BUSAK+SHAMBAN(B+S) RG4500900
BUSAK+SHAMBAN(B+S) RG4300900
BUSAK+SHAMBAN(B+S) RG4500920
BUSAK+SHAMBAN(B+S) RG4500950
BUSAK+SHAMBAN(B+S) RG4300950
BUSAK+SHAMBAN(B+S) RG4501000
BUSAK+SHAMBAN(B+S) RG4301000
BUSAK+SHAMBAN(B+S) Glyd Ring NEW + ORIGINAL+ ONE YEAR WARRANTY
