BUSAK+SHAMBAN(B+S)防塵封WAP000500-N9T60產品參數
Rod Diameter dN f8/h9 | 50.0 |
Groove Diameter D3 +H9 | 58.6 |
Groove Width L3 +0.1 | 5.3 |
Bore Diameter D4 +0.2 | 53.0 |
TSS Part No. | WAP000500 |
Description | WRM196228 |
BUSAK+SHAMBAN(B+S)防塵封WAP系列產品介紹
Description
Scraper rings are essential components of any hydraulic or pneumatic equipment.
These are protection components for axial moving rods: they ensure that foreign matter is not introduced into the system, avoiding costly wear and damage to all the internal components including seals.

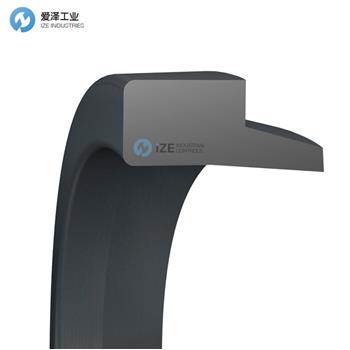

WRM scrapers are manufactured in nitrile elastomer with precision machined wiper lip, which produces a very effective wiping action.
Advantages
- Space-saving construction
- Low cost, economical solution
- Simple, easy-construction groove
- Easy installation and removal without tools
Application Examples
Due to their outstanding wiping capacities WRM scrapers are recommended wherever there are dusty and humid conditions and especially for the following applications:
Valve spindles
Slide valves
Hydraulic cylinders
Agriculture machinery
Technical Data
Operating conditions
Speed: Up to 1 m/s
Temperature: -30° C to +110° C
Media: Mineral oil based hydraulic fluids,polyglycol-water emulsions, water-oil emulsions
Groove type: Closed
描述
刮環是任何液壓或氣動設備的重要組成部分。
這些是軸向移動桿的保護組件：它們確保不會將異物引入系統，避免對包括密封件在內的所有內部組件造成昂貴的磨損和損壞。
WRM 刮刀由丁腈橡膠制成，帶有精密加工的刮唇，可產生非常有效的刮擦作用。
優點
- 節省空間的結構
- 低成本、經濟的解決方案
- 簡單，易于施工的凹槽
- 無需工具即可輕松安裝和拆卸
應用示例
由于 WRM 刮刀具有出色的擦拭能力，因此建議在多塵和潮濕的環境中使用，尤其適用于以下應用：
閥桿
滑閥
液壓缸
農業機械
技術數據
運行條件
速度：高達 1 m/s
溫度：-30° C 至 +110° C
介質：礦物油基液壓油、聚乙二醇-水乳液、水-油乳液
槽型：封閉式
BUSAK+SHAMBAN(B+S)防塵封WAP系列其他常見型號：
BUSAK+SHAMBAN WAP000500-N9T60
BUSAK+SHAMBAN WAP000460
BUSAK+SHAMBAN WAP000480
BUSAK+SHAMBAN WAP000490
BUSAK+SHAMBAN WAP000500
BUSAK+SHAMBAN WAP100500
BUSAK+SHAMBAN WAP000508
BUSAK+SHAMBAN WAP000530
BUSAK+SHAMBAN WAP000550
BUSAK+SHAMBAN WAP100550
