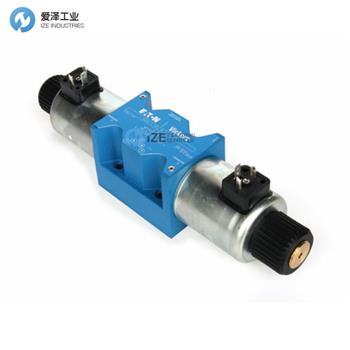

VICKERS液壓閥DG4V-5-2CJ-M-U-H6-20產品參數
Feature | DG4V-5 | |
Pressure Limits | ||
P, A and B ports | 315 bar (4500 psi) | |
T port: TA | 120 bar (1750 psi) for AC Sol. | |
TB | 160 bar (2325 psi) for DC Sol. | |
Flow rating | See performance data | |
Relative duty factor | Continuous; ED = 100% | |
Type of protection: | IEC 144 class IP65 | |
Coil winding | Class H | |
Lead wires (coils type F***) | Class H | |
Coil encapsulation | Class F | |
Permissable voltage fluctuation: | ||
Maximum | Refer to temperature limits. | |
Minimum | 90% rated | |
Typical response times at 100% rated volts measured from application/removal of voltage to full spool displacement of “2C” spool at: | ||
Flow rate P-A, B-T | 40 l/min (10.6 USgpm) | |
Pressure | 175 bar (2537 psi) | |
AC (~) energizing | 30 ms | |
AC (~) de–energizing | 40 ms | |
DC (=) energizing | 120 ms n | |
DC (=) de–energizing | 45 ms n* | |
Power consumption, AC | Initial | Holding |
Dual frequency coils at | 700 | 105 |
Dual frequency coils at | 105 | 130 |
Power consumption, DC solenoids at rated voltage and 20 C (68 F). Full power coils: | ||
Others | 38W | |
Model type “HL” | 32W | |
Mass, Approx. kg (lb) | ||
Single solenoid models, AC coils | 4,0 (8.8) | |
Single solenoid models, DC coils | 4,8 (10.6) | |
Double solenoid models, AC coils | 4,5 (9.9) | |
Double solenoid models, DC coils | 6,3 (13.9) | |
Temperature Limits | ||
Minimum ambient | –20 °C (–4 °F) | |
Maximum ambient: | ||
AC 50 Hz valves | 50 °C (122 °F) | |
AC 60 Hz valves | 40 °C (104 °F) | |
DC valves | 70 °C (158 °F) | |
VICKERS液壓閥DG4V-5系列產品介紹
A range of four-port solenoid operated directional control valves with four-land spool design to facilitate provision of smooth, variable valve response speeds.
The range includes:
? AC and DC wet-armature solenoid options with ISO 4400 (DIN 43650) electrical connections and manual overrides.
? Many spool types; in spring-offset, spring-centered and detented arrangements.
? Compact, cost effective system design when used with Eaton ? SystemStak? valves and subplates.
一系列具有四通滑閥設計的四通電磁操作方向控制閥，有助于提供平穩，可變的閥響應速度。
范圍包括：
?帶有ISO 4400（DIN 43650）電氣連接和手動操作的交流和直流濕電樞螺線管選件。
?許多線軸類型；以彈簧偏置，彈簧居中和定位的方式布置。
?與Eaton SystemStak閥門和底板一起使用時，緊湊，經濟高效的系統設計。

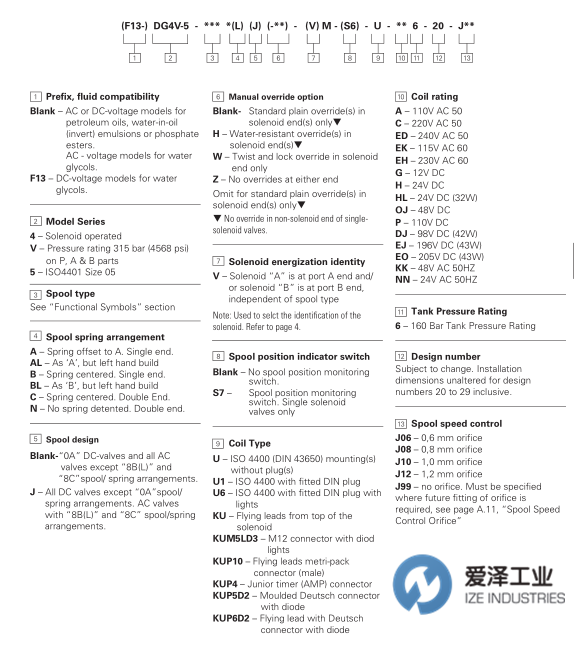

VICKERS液壓閥DG4V-5系列選型
VICKERS液壓閥DG4V系列其他常見型號：
VICKERSCORP DG4V-5-6CJ-H-M-U-G6-20
VICKERSCORP DG4V-5-0BL-M-U-EH6-20
VICKERSCORP DG4V-5-6CJ-M-U-HL6-20
VICKERSCORP DG4V-5-6CJ-H-M-U-G6-20
VICKERSCORP DG4V-5-2AL-VM-U-EK6-20
VICKERSCORP DG4V-5-2CJ-M-U-H6-20-EU3
VICKERSCORP DG4V-5-8CJ-VM-U-G6-20-J06
VICKERSCORP DG4V-5-2CJ-M-U-H6-20-J99
VICKERSCORP DG4V-5-0CJ-M-U-H6-20-J99
VICKERSCORP DG4V-5-2CJ-M-U-H6-20-J06
