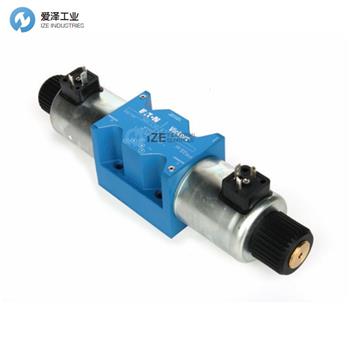

VICKERS液壓閥DG4V-5-2CJ-M-U-H7-22產品參數
Code | DG4V-5-2CJ-M-U-H7-22 |
Model series | [DG4V-5] |
Spool Type | [2] |
Spool Spring Arrangement | [C] Spring centered. Double End. |
Spool design | [J] – All DC valves except “0A”spool/ spring arrangements. AC valves with “8B(L)” and “8C” spool/spring arrangements. |
Flag Symbol | [M] Electrical options and features |
Coil Type | [U] ISO4400, DIN43650 connector |
Coil Rating | [H] 24V DC |
Tank Pressure Rating | [7] 207 bar (3000 psi) for DC high performance models, DG4V-3, including spool position indicator type S6. |
Orifice Plug | [22] 2.2 mm dia. |
VICKERS液壓閥DG4V系列介紹
電磁方向控制閥用于在液壓系統的任何位置引導和停止流動。
? 高效控制更大的液壓功率，而不會增加電磁閥功耗。
? 更高的功率/重量和尺寸比可節省安裝成本和空間。
? 可通過選擇多種電磁閥連接器和位置組合實現安裝靈活性。DG4V3-S/R- 高性能和標準性能閥
? Viton 密封件是多流體能力的標準配置。丁腈密封件可作為型號代碼選項。
? 由于經過超過 2000 萬次循環測試，疲勞壽命和耐久性得到證實，因此機器持續生產率更高，正常運行時間更長。
? 電磁線圈可快速輕松更換，液壓系統不會泄漏。
? 與 Eaton? SystemStak? 閥和底板一起使用時，系統設計緊湊、經濟高效。
? 30 l/min 時最小壓降為 2.5 bar。
? 線圈連接器范圍包括 DIN、Deutsch、AMP 和接線盒。
? 線圈電壓和電源選項范圍。
? 在 350 bar (5000 psi) 時分別高達 80 l/min (21 USgpm) 和 40 l/min (10.5 USgpm)。
Solenoid operated directional control valves are for directing and stopping f low at any point in a hydrau lic system.
? Efficient control of greater hydraulic powers without increasing solenoid power consumption.
? Installed cost and space savings from higher power/weight-and-size ratios.
? Installation flexibility resulting from choice of numerous combinations of solenoid connectors and locations. DG4V3-S/R- High Per formance and Standard Performance Valves
? Viton seals as standard for multi-fluid capability. Nitrile seals available as a model code option.
? Higher sustained machine productivity and higher uptime because of proven fatigue life and endurance, tested over 20 million cycles.
? Solenoid coils can be changed quickly and easily without leakage from hydraulic system.
? Compact, cost effective system design when used with Eaton? SystemStak? valves and subplates.
? Minimum pressure drop 2.5 bar at 30 l/min.
? Range of coil connectors including DIN, Deutsch, AMP and terminal box.
? Range of coil voltages and power options.
? Up to 80 l/min (21 USgpm) and up to 40 l/min (10.5 USgpm) respectively at 350 bar (5000 psi).
VICKERS液壓閥DG4V系列其他常見型號：
VICKERS DG4V-5-6CJ-H-M-U-G6-20
VICKERS DG4V-5-0BL-M-U-EH6-20
VICKERS DG4V-5-6CJ-M-U-HL6-20
VICKERS DG4V-5-6CJ-H-M-U-G6-20
VICKERS DG4V-5-2AL-VM-U-EK6-20
VICKERS DG4V-5-2AJ-M-U-H7-29-EN124-EU3
VICKERS DG4V-5-8CJ-VM-U-G6-20-J06
VICKERS DG4V-5-2AJ-M-U-H7-29-EN124-J99
VICKERS DG4V-5-0CJ-M-U-H6-20-J99
VICKERS DG4V-5-2AJ-M-U-H7-29-EN124-J06
VICKERS DG4V-3-6B-M-U-H7-60
VICKERS DG4V-5-2CJ-M-U-H7-22
VICKERS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS液壓閥DG4V-5-2CJ-M-U-H7-22的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VICKERS液壓閥DG4V-5-2CJ-M-U-H7-22技術參數介紹
