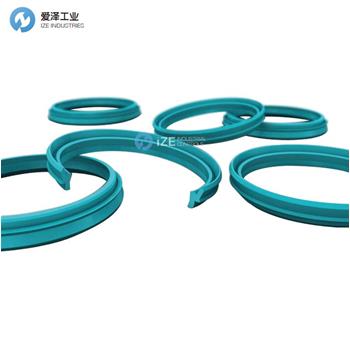

BUSAK+SHAMBAN(B+S)防塵封WD1704000-FPM產品參數
Installation Dimensions | |
Rod Diameter, dN f8/h9 | 400.0 mm |
Groove Diameter, D3 H9 | 415.0 mm |
Groove Width, L3 +0.2 | 9.5 mm |
Bore Diameter, D4 H11 | 407.0 mm |
Step Width, a min. | 3.0 mm |
Width, B | 13.0 mm |
BUSAK+SHAMBAN(B+S)防塵封WD1704000-FPM產品介紹
特殊設計的內側密封唇能提供最佳的接觸壓力，并對殘留的油膜產生極好的刮除效果。
外側刮塵唇緊貼溝槽，以保證最佳的密封力，進而防止臟物和水通過溝槽底部侵入系統。在污染物嚴重侵襲和活塞桿側向操作時，防塵圈也能起保持穩定的作用。聚氨酯橡膠材料可保證使用壽命長。同時業已證明，這種防塵圈安裝時不易損壞。
The specially designed inner sealing lip can provide the best contact pressure and produce excellent scraping effect on the residual oil film.
The outer dust scraping lip is close to the groove to ensure the best sealing force, so as to prevent dirt and water from entering the system through the groove bottom. The dust ring can also play a stable role in the serious invasion of pollutants and the lateral operation of the piston rod. Polyurethane rubber material can guarantee long service life. At the same time, it has been proved that the dust ring is not easy to be damaged during installation.
BUSAK+SHAMBAN(B+S)防塵封WD系列其他常見型號：
BUSAK+SHAMBAN(B+S) WD2400900-Z201
BUSAK+SHAMBAN(B+S) WD2400950-Z201
BUSAK+SHAMBAN(B+S) WD2401000-Z201
BUSAK+SHAMBAN(B+S) WD2401050-Z201
BUSAK+SHAMBAN(B+S) WD2401100-Z201
BUSAK+SHAMBAN(B+S) WD2401250-Z201
BUSAK+SHAMBAN(B+S) WD2401400-Z201
BUSAK+SHAMBAN(B+S) WD2401500-Z201
BUSAK+SHAMBAN(B+S) WD2401600-Z201
BUSAK+SHAMBAN(B+S) WD2401700-Z201
BUSAK+SHAMBAN(B+S) WD2401800-Z201
BUSAK+SHAMBAN(B+S) Seal NEW + ORIGINAL+ ONE YEAR WARRANTY
