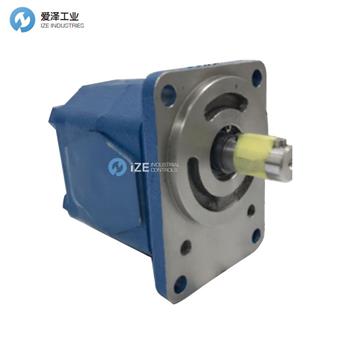

UCHIDA REXROTH齒輪泵GSP2-16系列技術參數
Size | 16 |
Displacement volume cm3 | 16.2 |
Pressure MPa | Rated pressure: 25 |
Rotational speed min-1 | supreme: 2500 |
GD2×10-4 kgf-m2 | Single type: 2.1 |
Weight kg | Flange mount type: 5.5 |
UCHIDA REXROTH齒輪泵GSP2系列介紹
外嚙合齒輪泵可在 25MPa 的高壓下連續使用。
側浮系統確保始終保持最佳的齒輪側間隙，無論壓力如何變化，都能實現高效率。
殼體配合面采用平行銷定位，易于拆卸和重新組裝以及維護。
有多種選擇，例如底腳和法蘭等附件以及串聯泵。
External gear pump can be used continuously at a high pressure of
25 MPa.
The side-floating system ensures that the gearside clearance is optimally maintained at all times, resulting in high efficiency regardless of pressure changes.
The mating surface of the housing uses parallel pins for positioning, making it easy to disassemble and reassemble and maintain.
There are a wide variety of options such as accessories such as foots and flanges, as well as tandem pumps.
UCHIDA REXROTH齒輪泵GSP2系列其他常用型號：
UCHIDA REXROTH GSP2-A0S06AL-A0
UCHIDA REXROTH GSP2-A0S08AL-A0
UCHIDA REXROTH GSP2-A0S12AL-A0
UCHIDA REXROTH GSP2-A0S16AL-A0
UCHIDA REXROTH GSP2-A0S22AL-A0
UCHIDA REXROTH GSP2-A0S06AR-A0
UCHIDA REXROTH GSP2-A0S08AR-A0
UCHIDA REXROTH GSP2-A0S12AR-A0
UCHIDA REXROTH GSP2-A0S16AR-A0
UCHIDA REXROTH GSP2-A0S22AR-A0
UCHIDA REXROTH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于UCHIDA REXROTH齒輪泵GSP2-A0S16AL-A0 R971H90977的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for UCHIDA REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
UCHIDA REXROTH齒輪泵GSP2-A0S16AL-A0 R971H90977技術參數及介紹
