DAIKIN液壓泵V系列產品參數
Specification | |||||||
Model No. | Theoretical discharge rate cm3/rev | Maximum operating pressure | Permissible rotational speed min-1 | Discharge rate adjustment range 1800 min-1 | Mass (Control method A) kg | ||
Axial port | Side port | Axial port | Side port | ||||
V8 | 8 | 7 { 70} | 500 to 1800 | 2 to 14.4 | ? | 8.9 | |
V15 | 14.8 | 21 {210} | 500 to 1800 | 4.5 to 26.6 | 7.5 to 26.6 | 12.8 | 14.5 |
V15 (Type Y) | 14.8 | 7 { 70} | 500 to 1800 | 4.5 to 26.6 | 13.5 | ||
V23 | 23 | 25 {250} | 500 to 1800 | 12 to 41.4 | 18.4 | 21.5 | |
V38 | 37.7 | 25 {250} | 500 to 1800 | 34 to 68 | 36.5 to 68 | 24.4 | 26 |
V50 | 51.6 | 21 {210} | 500 to 1800 | 0 to 93 | ? | 50 | |
V70 | 69.8 | 21 {210} | 500 to 1800 | 13 to 126 | ? | 55 |

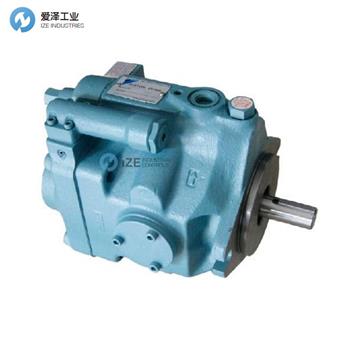

DAIKIN液壓泵V8A1RX-20產品介紹
在整個壓力范圍內實現了低噪聲運行。由于功率損耗較小,流體溫升可以降低。高響應、高穩定性和長壽命使提高主機可靠性成為可能。
Low noise operation over the entire pressure range has been realized in this series. Fluid temperature rise can be reduced due to smaller power loss. High responsively, high stability, and long life make it possible to increase the reliability of the main machine.

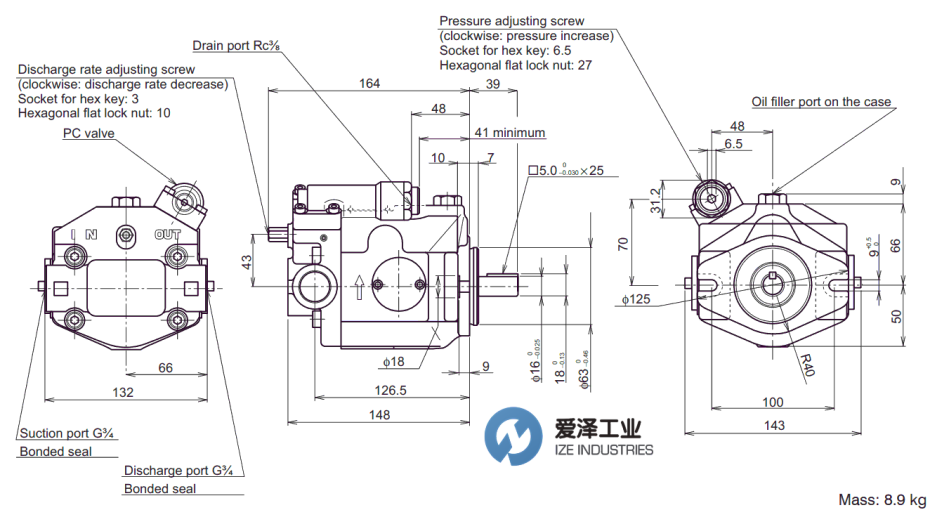

DAIKIN液壓泵V8A1RX-20技術尺寸圖
DAIKIN液壓泵V8A1RX-20其他常見型號:
DAIKIN V8A1RX-20
DAIKIN V15A RX-95
DAIKIN V15A R-95
DAIKIN V15A3RX-95RC
DAIKIN V15A3R-95RC
DAIKIN V15C RHX-95
DAIKIN V15C 3RHX-95RC
DAIKIN V15C RJ X-95
DAIKIN V15C 3RJ X-95RC
