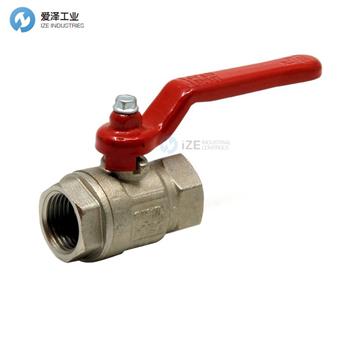

HYDAC球閥KHNVN-G1-2233-01X升級型號KHNVN-G1-2233-12X
HYDAC球閥KHNVN系列規格描述
Technical specifications | |
Type of connection: | Whitworth female thread to ISO 228 (G) |
Mounting position: | No orientation restrictions |
Ambient temperature: | -20 °C to +160 °C |
Nominal pressure: | up to PN 140 |
Operating media: | Mineral oil to DIN 51524 part 1 + 2, gaseous media, compressed air, water other media on request |
Temperature of operating media: | -20 °C to +160 °C |
operating media: -20 °C to +160 °C A | All ball valves can be supplied with the following |
HYDAC球閥KHNVN系列介紹
2-WAY LOW PRESSURE BALL VALVES
HYDAC 2/2-way low pressure ball valves are, according to DIN-ISO 1219, components which are used to shut-off a pressure flow in both directions.
HYDAC 2/2-way low-pressure ball valves are available in 2 models.
The standard model with thread to ISO 228 and the heavy-duty model with thread to ISO 7/1
Advantages : - no glands, therefore no manual readjustment of seals required - sealing principle with floating ball, sealing on both sides - full-flow passage to ensure unrestricted flow of the medium.
2通低壓球閥
根據DIN-ISO 1219，HYDAC 2/2通低壓球閥是用于切斷雙向壓力的組件。
HYDAC 2/2通低壓球閥有2種型號。
帶有符合ISO 228的螺紋的標準型號和帶有符合ISO 7/1的螺紋的重型型號
優點：-無壓蓋，因此無需手動調整密封件-浮球密封原理，兩側密封-全流量通道，確保介質暢通無阻。

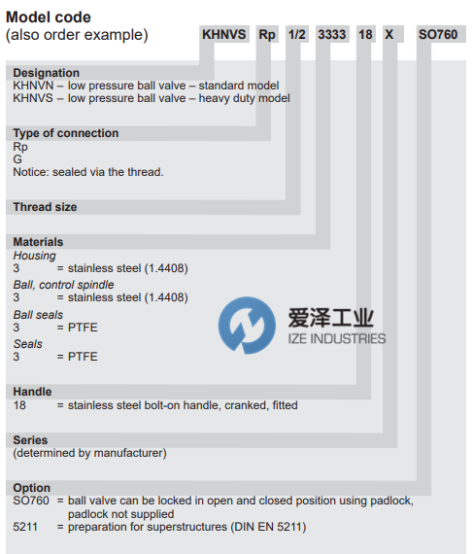

HYDAC球閥KHNVN系列型號解析
HYDAC球閥KHNVN系列其他常用型號：
HYDAC KHNVN-G1-2233-12X
HYDAC KHNVN-G1-3333-18X
HYDAC KHNVN-G1/2-2233-12X
HYDAC KHNVN-G1/2-3333-18X
HYDAC KHNVN-G1/4-2233-12X
HYDAC KHNVN-G1/4-3333-18X
HYDAC KHNVN-G11/2-2233-12X
HYDAC KHNVN-G11/2-3333-18X
HYDAC KHNVN-G11/4-2233-12X
HYDAC KHNVN-G11/4-3333-18X
HYDAC Ball valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC球閥KHNVN-G1-2233-12X的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
HYDAC球閥KHNVN系列KHNVN-G1-2233-12X規格描述
