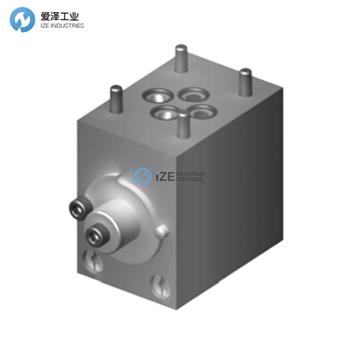

HYDAC球閥KHB4K系列規格描述
KHB4K-DN06-1302-09X | |
Connection type | CETOP DN06 |
Interface | DIN 24340-A6 ISO 4401 |
Temperature of the medium | –10°C to + 70°C |
Ambient temperature | –10°C to + 70°C |
Nominal pressure | PN 315 bar |
Max. operating pressure | PB 315 bar |
HYDAC球閥KHB4K系列功能介紹
Function
The sandwich plate is mounted before DN06/DN10 directional valves and is used to isolate all channels at the same time via a common spindle. This is operated manually using an openended spanner SW9. This means that the directional valve mounted on the sandwich plate can be changed quickly without having to relieve the pressure or
drain the system, and with a minimum of leakage.
In normal operation, all channels are open. The spindle is secured and locked with two screws to prevent unauthorized operation.
功能
夾層板安裝在DN06 / DN10方向閥之前,用于通過一個公共主軸同時隔離所有通道。 使用開放式扳手SW9手動操作。 這意味著安裝在夾層板上的方向閥可以快速更換,而不必釋放壓力或
排干系統,并減少泄漏。
在正常操作中,所有通道都是打開的。 主軸用兩顆螺釘固定并鎖定,以防止未經授權的操作。

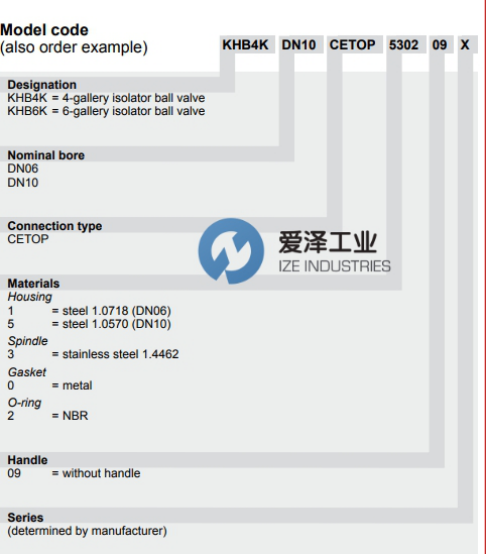

HYDAC球閥KHB4K系列型號解析
HYDAC球閥KHB4K系列其他常用型號:
HYDAC KHB4K-DN06-1302-09X
HYDAC KHB6K-DN10-5302-09X
