TALLERES PUJOL齒輪泵MP系列規格描述
Specification | |
model 22 MP/5 | 1.3 litres/minute |
model 22 MP/10 | 2.6 litres/minute |
model 22 MP/15 | 3.9 litres/minute |
TALLERES PUJOL齒輪泵22-MP產品介紹
22-MP型泵的設計旨在在小流量下提供良好的服務。它們主要用于噴涂，配料和類似應用。
泵體和泵蓋由特殊鑄鐵制成，齒輪和軸由淬硬鋼制成。主軸由大型自潤滑青銅軸承支撐。
泵配有無滴灌壓蓋，無需任何維護。
驅動軸由泵端的滾珠軸承支撐，使軸可以由簡單的皮帶輪和皮帶驅動，而不會影響泵的效率。
Type 22-MP pumps are designed to give good service at small flow rates. They are used mainly for spraying, proportioning and similar applications.
The pump body and cover are made in special cast iron, and gears and shafts, in ground hardened steel. The main shaft is supported by a large self-lubricated bronze bearing.
Pumps are fitted with a non-drip gland, which does not require any maintenance.
The drive shaft is supported by a ball-bearing on the pump end,enabling the shaft to be driven by a simple pulley and belt without affecting the efficiency of the pump.

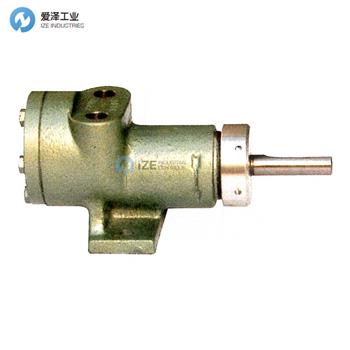

TALLERES PUJOL齒輪泵22-MP
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件TALLERES PUJOL 齒輪泵部分型號：
TALLERES PUJOL 22-MP/5
TALLERES PUJOL 22-MP/10
TALLERES PUJOL 22-MP/15
TALLERES PUJOL pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TALLERES PUJOL齒輪泵22-MP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TALLERES PUJOL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
TALLERES PUJOL齒輪泵22-MP產品參數
