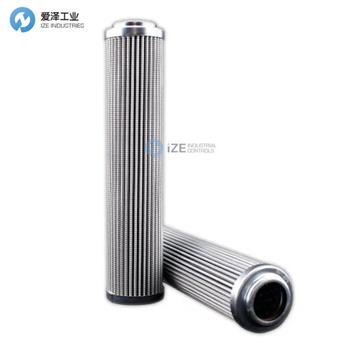

SOFIMA濾芯CCH153FC1技術參數
Weight | 3 lbs |
Dimensions | 9 × 8 × 8 in |
O.D. | 1.77" |
I.D. Top | 1.00" |
I.D. Bottom | NA |
Length Overall | 8.22" |
Construction Type | Microglass, Single Open End |
Efficiency | Beta7.7 = 1000 |
Gasket Material | Viton |
Gasket Type | Internal O-Ring |
Wire Mesh Support? | Yes |
Change-Out PSID | 25 PSID |
Max Operating Pressure | 305 PSID Collapse |
Max Temp | 248 Degress F |
Weight Each | 3 |
SOFIMA濾芯CCH153FC1產品介紹
描述
Sofima CCH153FC1替代液壓濾清器保證在形式，裝配和功能上都能直接替代。
過濾器介質以ISO 16889多次通過測試和其他ISO / SAE測試協議為支持，并且過濾器在ISO認證的制造工廠中生產。獲得ISO認證的制造設施所要做的就是質量控制，一致性，責任感以及對設計的忠實度。
該Sofima CCH153FC1液壓濾清器更換元件為beta級。
經過優化的微玻璃介質可用于精細過濾，就像要更換的Sofima CCH153FC1液壓過濾器一樣。微玻璃在濾芯中使用了適量的介質和褶皺，以確保高容塵量。單元中褶的正確數量和設計將提供最低的初始?jí)航?，這意味著過濾器將需要更長的時間才能達到其轉換壓降，通常為25 PSID。
Beta7.7 = 1000，相當于效率99.9％
該過濾器可與以下流體兼容，但壓降將根據粘度和溫度而變化：
液壓油和加工液，水乙二醇和冷卻劑
柴油，汽油和其他燃料，潤滑油，合成潤滑油和工藝流體
渦輪和壓縮機潤滑油……還有更多流體
Sofima CCH153FC1液壓濾清器表示為替代產品，并非由所列OEM或品牌制造或與之關聯。
Description
Sofima CCH153FC1 replacement hydraulic filter is a guaranteed direct replacement in form, fit, and function.
Filter media is backed by ISO 16889 multi-pass testing and other ISO/SAE test protocols, and the filter is produced in an ISO Certified manufacturing facility. An ISO Certified manufacturing facility is all about quality control, consistency, responsibility, and being true to the design.
This Sofima CCH153FC1 hydraulic filter replacement element is beta-rated.
Optimized microglass media is used for fine filtration, just like the Sofima CCH153FC1hydraulic filter that you’re replacing. Our Microglass uses the optimal amount of media and pleats in the element to ensure high dirt-holding capacity. The correct number and design of pleats in the element will give you the lowest initial pressure drop, meaning the filter will take longer to reach its change-out pressure drop, usually 25 PSID.
Beta7.7 = 1000, equivalent to efficiency of 99.9%,
This filter is compatible with the following fluids, but pressure drop will vary depending on viscosity and temperature:
Hydraulic Fluid and Machining Fluids, Water Glycols and Coolants
Diesel, Gasoline and other fuels, Lubricating Oils, Synthetic Lubricants, and Process Fluids
Turbine and Compressor Lube Oils … And many more fluids
Our Sofima CCH153FC1 hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed.
SOFIMA濾芯CCH153FC1系列其他型號：
SOFIMA CCH1532C1
SOFIMA CCH1532D1
SOFIMA CCH153FC1
SOFIMA CCH153FV1
SOFIMA CCH153FT1
SOFIMA CCH153FD1
SOFIMA CCH1532V1
SOFIMA CCH1532T1
