APTECH調壓閥AP1700系列描述
Operating Parameters | |
Source pressure | vacuum to 3,500 psig (241 bar) |
Delivery pressure AP1702 | 1 to 30 psig (0.07 to 2 bar) |
First stage pressure | 175 psig (12 bar) nominal |
Proof pressure | 150% of operating pressures |
Burst pressure | 300% of operating pressures |
Other Parameters | |
Inlet/outlet connectors | 1/4 or 3/8 inch face seal or tube weld |
Bonnet port | 1/8 inch NPT |
Flow coefficient (Cv) | 0.05 (0.07 HF option) |
Internal volume | 0.92 in3 (15.1 cm3) |
Operating temperature | -40° to +160°F (-40° to +71°C)* |
Surface finish | 15 μin Ra max / 10 μin. Ra avg. |
Inboard leakage | 2 x 10-10 sccs |
Outboard leakage | 2 x 10-9 sccs He at 1,500 psig inlet pressure |
Leakage across seat | 4 x 10-8 sccs He at 1,000 psig inlet pressure |
Installation | panel (optional) |
Supply pressure effect | 0.05 psig per 100 psig source pressure change |
APTECH調壓閥AP1700系列產品介紹
? Regulator of choice for B2H6 cylinder applications
? SS 316L VAR secondary remelt construction
? Surface finish 15 Ra max/10 Ra avg (10, 7 & 5 Ra max options)
? Vacuum to 3,500 psig (241 bar) inlet; HR option to 4,500 psig (310 bar)
? Higher flow HF option
? Two stage pressure reduction eliminatessupply pressure effect
? Knob LOTO option
?B2H6氣缸應用的首選調節器
?SS 316L VAR次要機架結構
?表面粗糙度15 Ra max / 10 Ra avg（10、7和5 Ra max選項）
?真空至3500 psig（241 bar）入口； HR選項為4,500 psig（310 bar）
?高流量HF選件
?兩級減壓消除了供應壓力的影響
?旋鈕LOTO選項
APTECH調壓閥AP1700系列選型及尺寸圖
APTECH調壓閥AP1700系列其他常見型號：

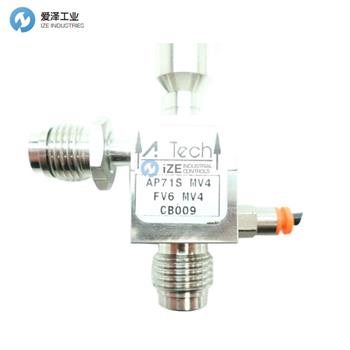

APTECH AP71S-MV4-FV6-FV4
APTECH AP71S MV4-FV6-FV4 FV4
APTECH AP71S MV4 MV4 MV4
APTECH AP1710SM-3PW-MV4-MV4-IV4
APTECH AP1710SHM2PWFV4FV4109
APTECH AP1710S 2PM FV4 P
APTECH AP1710S 2PW FV4 FV4
APTECH Pressure regulating valve NEW + ORIGINAL+ ONE YEAR WARRANTY
