EATON柱塞泵PVH141R13AF30A23VH002001AB010A技術參數
Code | PVH141R13AF30A230000002001AB010A |
Pump Series | PVH - PVH OC Piston Pump |
Displacement | 141-141.0 cm3/r [8.60 in3/r] |
Rotation | R - Right-Hand Rotation (cw) |
Front Mounting and Input Shaft | 13 - 4 Bolt C, 1-1/2 inch Dia Straight Keyed |
Main Ports Size & Location | AF - Side Ports; Suction 2.5 in. (Code 61); Pressure - 1.25 in. (Code 62) |
Drain Ports Size & Location | 3 - #10 SAE O-Ring Port - Bot- tom (Top Plugged) |
Diagnostic Pressure Ports | 0 - No Diagnostic Pressure Ports |
Controller Type | A - Pressure Compensator |
Pressure Comp. Setting | 23 - 226-234 bar [3278-3394 psi] |
Flow Compensator Setting | 00 - No Flow Comp. Setting |
Torque Setting/ Other Comp. | 00 - None |
Control Special Features | 00 |
Maximum Displacement Option | 2 - Adjustable Max Displacement (Set at Max) |
Auxiliary (Rear) Mount and Output Shaft | 00 - No Auxiliary Mounting Features |
Shaft Seal | 1 - Single, OneWay Shaft Seal, Viton? |
Pump Special Features | AB |
Paint | 01 - Blue Primer |
Identification | 0 - Standard |
Design Code | A - First Design |

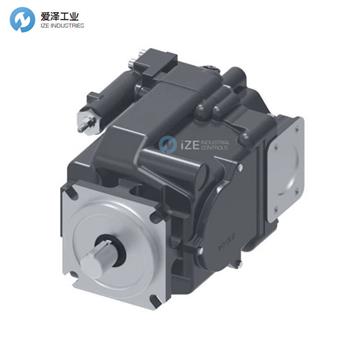

EATON柱塞泵PVH系列介紹
Vickers? PVH 高流量、高性能泵是一系列可變排量、直列活塞單元，融合了其他 Vickers 活塞泵的成熟設計、高質量制造技術和操作功能，但封裝更小、更輕。
PVH 系列經過專門設計，可滿足新一代設備設計的 250 bar (3625 psi) 連續工作性能要求。
這些泵高效、可靠，配有多種可選控制裝置，可實現更大的操作靈活性。它們專為高強度應用而設計，可提高土方工程、建筑、機床、塑料和所有其他注重節能的市場所需的生產率和可控性。與所有伊頓產品一樣，這些泵經過了全面的實驗室測試和現場驗證。
Eaton’s Vickers? PVH high flow, high performance pumps are a family of variable displacement, inline piston units that incorporate the proven design, quality manufacturing techniques and operating features of other Vickers piston pumps, but in a smaller, lighter package.
The PVH series has been specially designed to meet the 250 bar (3625 psi) continuous duty performance requirements of new generation equipment designs.
These are efficient, reliable pumps, with a selection of optional controls for maximum operational flexibility. Designed specifically for strenuous application, they provide the productivity gains and controllability improvements desired in earthmoving, construction, machine tool, plastics, and all other energy-conscious markets. As with all Eaton products, these pumps have been fully laboratory tested and field proven.

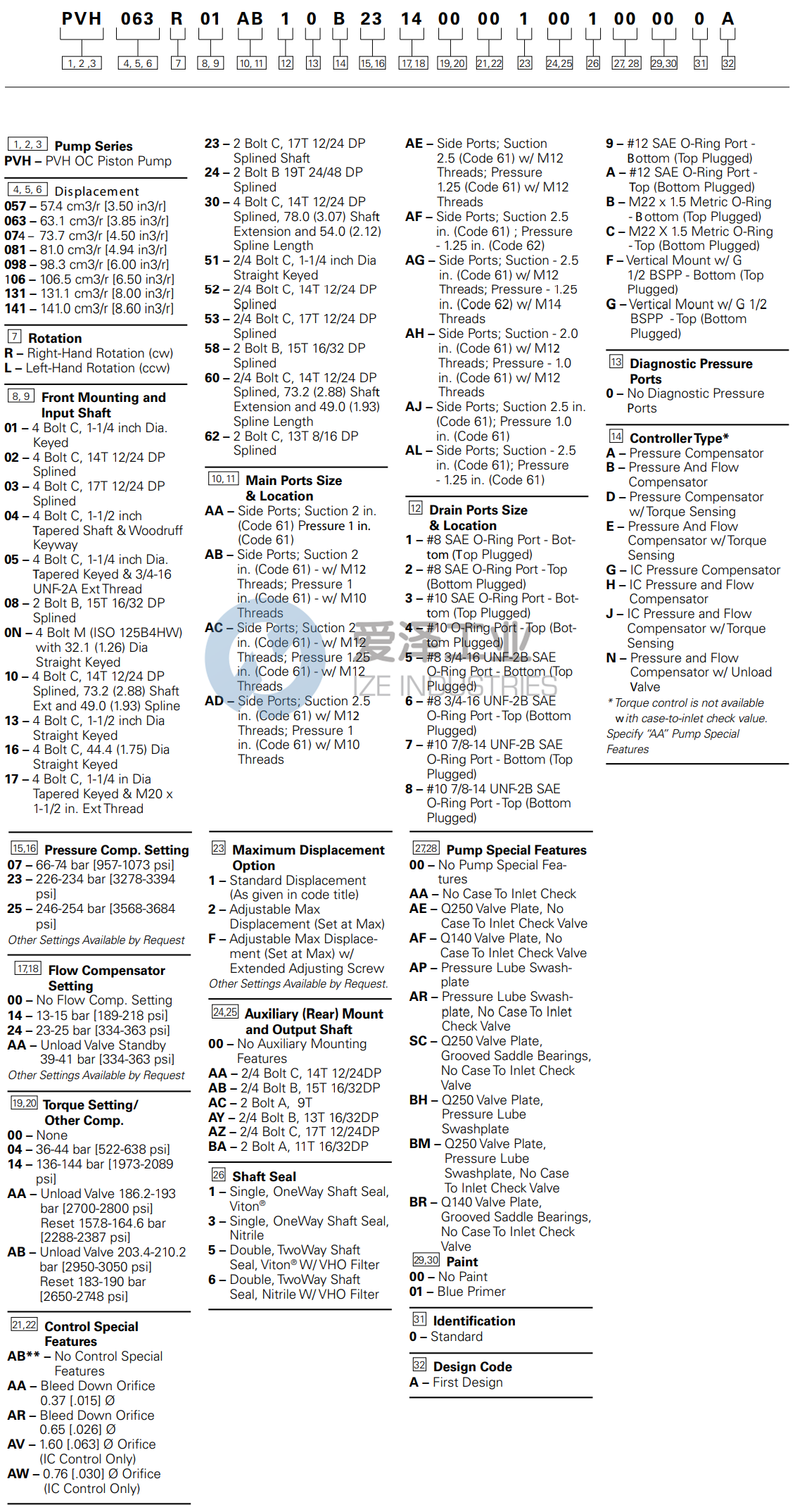

EATON柱塞泵PVH系列選型
EATON柱塞泵PVH系列其他常用型號：
EATON PVH098R01AJ30A250000001001AW010A
EATON PVH098R01AJ30A250000002001AB010A
EATON PVH098R01AJ30B072000002001AE010A
EATON PVH098R01AJ30B341900001001AF010A
EATON PVH098R01AJ30D250005001001BC010A
EATON PVH098R01AJ30D250010001001AE010A
EATON PVH098R01AJ30E252009001001AE010A
EATON PVH098R13AD30E252018001AM1AE010A
EATON PVH098R13AJ30A070000001AJ1AE010A
EATON PVH098RAD30A250000002001AB010A
EATON PVH131R12AF30B25200000100100010A
EATON PVH131R13AF30A250000001001AB010
EATON PVH131R13AF30A250000002001AE010A
EATON PVH131R13AF30B252000001001AB010A
EATON PVH141R13AF30B25200000100/AB010A
EATON PVH141R13AF30B252000001001AB010A
EATON PVH141R13AF30A23VH002001AB010A
EATON PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
