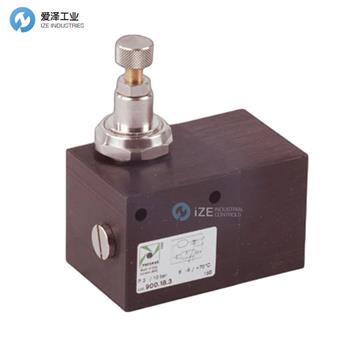

PNEUMAX電磁閥900.18系列
操作特性
流體：過濾并潤滑的空氣
工作壓力：3 ... 10
溫度（°C）：-5 ... +70
在6 bar壓力下，壓差為1時的流量（升/分鐘）：130
孔徑尺寸：2.5
Operational characteristics
Fluid:Filtered and lubricated air
Working pressure (bar):3 ... 10
Temperature °C:-5 ... +70
Flow rate at 6 bar with Δp=1 (Nl/min):130
Orifice size (mm):2.5
PNEUMAX電磁閥900系列介紹
900系列由以下組件組成：
壓力開關：將氣壓信號轉換為電信號的裝置。
脈沖發生器：將持續的氣壓信號轉換為可調節的脈沖，持續時間范圍為0到10秒。
氣動計時器（常閉或常開）：在可調節的時間內切斷或釋放氣壓信號。
雙手安全閥：確保雙手氣動控制的安全使用（例如兩個3/2常閉按鈕在一定距離內），避免按鍵或閥門故障的誤信號。
翻轉閥（Flip Flop）：5/2通道單信號驅動的閥門，每個脈沖切換出口，從2路切換到4路，反之亦然。
為了確保正常工作，入口壓力應與或低于先導壓力。
振蕩器閥：5/2 G 1/8寸，帶有兩個邏輯功能“NOT”，安裝在電路板上，當連接的氣缸排氣室壓力達到“NOT”閾值時切換。
信號放大器：3/2 G 1/8寸常閉閥門，受微弱信號驅動，但壓力高于0.05 bar。
漸進啟動閥：安裝在閥門或電磁閥與氣缸之間的一種裝置，可逐步充滿氣缸腔體，提供低推力的氣缸運動。漸進啟動閥由流量控制閥和一個帶有6毫米名義孔的2/2常閉閥組成，當氣缸內壓力達到入口壓力的50%時，閥門完全開通。
高低壓設備：位于閥門與氣缸之間的氣動回路中，允許氣缸在兩種不同壓力下工作。例如：在鎖定動作的情況下，可以在低壓力下接近所需位置，然后通過電信號將壓力提升到最大值。這些設備實際上由一個無泄放的導控壓力調節器組成。
The 900 series consist of the following components:
Pressure switch, which transforms a pneumatic signal into an electric one.
impulse generator, which transforms a permanent pneumatic signal into an adjustable impulse from 0 to 10 seconds.
Pneumatic timer (n.C. or n.O.), which cuts or releases a pneumatic signal within an adjustable time.
Two hands safety valve, which allows a safety use of two hands pneumatic controls (for example two push-button 3/2 N.C. to a certain distance) excluding false signals in case of push-button or valve malfunction.
Flip Flop: 5/2 ways valve, single signal actuated, commutes the outlet from 2 to 4 and vice versa at each puls.
For a correct functioning it’s important that inlet pressure be the same or lower than pilot pressure.
Oscillator valve, 5/2 G 1/8″ with two logic functions “NOT” mounted on board, switches when the pressure in the connected cylinder exhaust chamber is reaching the threshold of “NOT”.
Signal amplifier, 3/2 G 1/8″ N.C. valve actuated by weak signals but higher than 0.05 bar.
Progressive start-up valve, which is a device that is fitted in between valve or solenoid valve and cylinder allows a gradual filling of the chamber providing a low power cylinder movement. The progressive start-up valve is made of a flow control valve and a 2/2 N.C. valve with 6 mm nominal orifice. the valve is totally open when the pressure in the cylinder reaches 50% of inlet pressure.
High-low pressure devices, located in the pneumatic circuit between valve and cylinder, allow the function of the cylinder with two different pressures. Example: in case of a locking action, it is possible to approach the required position at a low pressure, then increase to its maximum value in the circuit with the use of an electric signal. they are practically made of a piloted pressure regulator without relieving.
PNEUMAX電磁閥900系列其他常用型號：
PNEUMAX 900.18.1
PNEUMAX 900.18.0
PNEUMAX 900.18.2N
PNEUMAX 900.18.3
PNEUMAX 900.18.3.6
PNEUMAX Solenoid Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
