OLEOWEB閥STBF-BSPP系列技術參數
| |
Mineral oil | ISO 6743/4 (DIN 51524) |
Oil viscosity | 15-250 mm2/s (15 to 250 cSt) |
Max contamination index | ISO 4406:1999 Classe 19/17/14 |
Oil temperature | -20°C +80°C -4°F + 176°F |
Environment temperature | -20°C +50°C -4°F + 122°F |
It is necessary a filter use to protect the valve (advised filtration 15 μm) | |

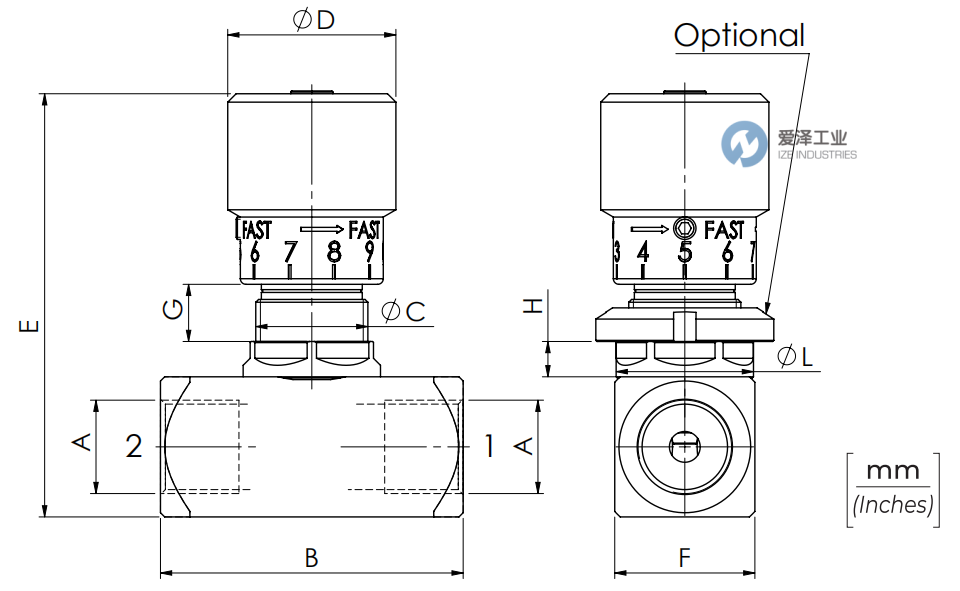

Type | STBF340 |
A | BSPP? |
Max flow | 80 l/min (21.1 USgpm) |
Max pressure | 400 bar (5800 psi) |
B | 81 (3.19) |
C | M35×1,5 |
D | 42 (1.65) |
E | 110 (4.33) |
F | 40 (1.57) |
G | 15,5 (0.61) |
H | 8 (0.31) |
L | 39.5 (1.56) |
Optional type | 84100024 |
Approx weight | 1,13 kg (2.50 lbt) |

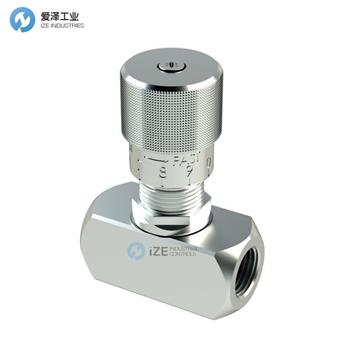

OLEOWEB閥STBF-BSPP系列介紹
借助 flowSTBF-BSPP 控制閥，可以調節交叉油流并控制液壓執行器（如氣缸或馬達）的速度。調節是雙向的。閥門配有集成的液壓補償器，調節流量取決于其兩個接頭的壓力降。通過 BSPP-GAS 的兩個螺紋接口，閥門可以輕松地在線安裝在液壓系統中。使用可根據要求提供的鎖緊螺母，還可以將調節手輪固定在墻壁上。根據所選尺寸，STBF-BSPP 閥門可以安裝在最大工作壓力為 400 bar、流量高達 300 lpm 的系統中。外殼由鋼制成，并通過鍍鋅防腐。內部組件也由鋼制成，并在必要時進行硬化和矯正。
Thanks to thecontrol valves flowSTBF-BSPP it is possible to regulate the flow of oil in crossing and the speed control of a hydraulic actuator such as a cylinder or a motor. The adjustment is bi-directional. The valves are equipped with hydraulic compensator integrated and the regulated flow is a function of the pressure drop with its two heads. Through the two mouths threaded BSPP-GAS, the valves can be easily installed in-line within the hydraulic system. Using a locknut available on request it is also possible to fix to the wall the adjustment handwheel. In function of the size chosen, thevalves STBF-BSPPcan be installed in systems with pressure the maximum exercise of 400 bar and flow rates up to 300 lpm. The outer body is made of steel and is protected from corrosion by galvanizing. The internal components are also made of steel, hardened and rectified where necessary.

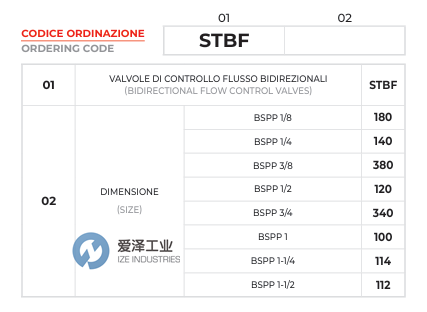

OLEOWEB閥STBF-BSPP系列選型
OLEOWEB閥STBF-BSPP系列其他常用型號：
OLEOWEB STBF180
OLEOWEB STBF140
OLEOWEB STBF380
OLEOWEB STBF120
OLEOWEB STBF340
OLEOWEB STBF100
OLEOWEB STBF114
OLEOWEB STBF112
