FILL-RITE輸油泵FR1211H技術參數
Max Flowrate | 15 GPM / 57 LPM |
Power Type | 12V DC |
Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
Inlet Size / Connection / Thread | 1 " / Female / NPT |
Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
Duty Cycle (min) | 30 min on / 30 min off |
Power Source | Electrical |
Motor Power (HP) | 0.25 |
Max Current (A) | 20 A |
Thermal Protection Switch | Yes |
Self Priming | Yes |
Suction Lift (ft.) | 8 ' |
Dry Vacuum (in. Hg) | 5 |
Operating Temperature Range (°F) | -- |
Discharge Head (ft) | 37 ' |
Strainer Mesh Size (Micron) | 20x20 |
Max Operating Pressure (PSI) | 16 |
Viscosity Range (cSt) | 1 to 4 |
Repeatability (+/- %) | 0.38% |
Pulse Rate | -- |
Accuracy (+/- %) | 1% |
Display Digits | 3 |
Display Type | Mechanical |
Battery Quantity | -- |
Battery Size | -- |
Battery Type | -- |
Batteries Included | -- |
Batteries Required | -- |
FILL-RITE輸油泵FR1211H產品介紹
FR1211H 型號是一款12V直流高負載燃料輸送泵，流量為15 GPM。該泵及配件套裝配有計量器、軟管、噴嘴、吸管和安裝組件。
特點：
鑄鐵結構：采用重型鑄鐵制造，具有無與倫比的耐用性，能承受現場或工地上最嚴酷的工作環境
可靠性能：采用信賴的旋葉泵技術，能每分鐘輸送15加侖，非常適合為15至60加侖的燃油箱加油
移動式油罐：由12V電機驅動，配備2英寸接口，適合連接12V電池并安裝在卡車貨箱的轉移油罐上
液體兼容性：適用于每日使用的汽油、柴油、最多E15的乙醇混合燃料、B20生物柴油混合燃料、煤油和礦物溶劑
簡便安裝：可調節的電氣接線盒可旋轉180°，便于在狹小空間內更靈活的布線和安裝
使用壽命長：具有熱保護裝置，防止過熱，確保泵長時間無憂運行
設備安全：內置網篩過濾器，可以過濾燃料中的顆粒，防止設備損壞
可靠的開關：開關桿采用堅固的金屬擋片，防止多次使用造成的提前失效

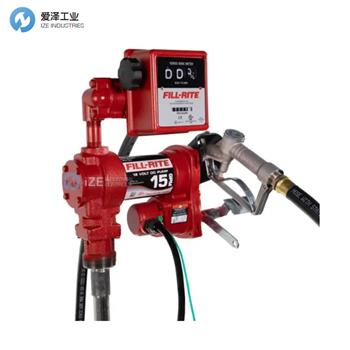

The FR1211H model is a 12V DC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, suction pipe, and installation components.
Features
Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
