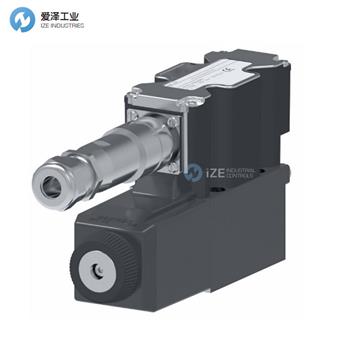

VICKERS閥KBCG-3-350D-Z-M1-2-A-PE7-H1-11技術參數
Valve Type | KB = Proportional valve with integral amplifier,B series |
Type | C = Pressure relief |
Mounting | G = Subplate mounted |
Interface | 3 = ISO 4401, size 3 (NFPA D03) |
Controlled Pressure Range At rated flow of 1 L/min (0.26 USgpm) | 350 = 6-350 bar (87-5000 psi) |
Standard Features | DZM = for KBCG3 |
Electrical Command Options | 1 = +/- 10 volts control signal |
Ramp Options | 2 = Standard ramp (typically 65 ms) |
Command/Pressure Characteristic | A = Standard |
Electrical Connection | PE7 = 7 pin connector, with plug supplied |
Coil Rating | H1 = 24V DC amplifier supply |
Design Number | 11 = 11 Series |
VICKERS閥KBCG-3系列介紹
一種電液比例溢流閥，用于調節液壓系統中的壓力，使其與施加的電輸入成比例。
這些開環單級閥可用于直接控制低流量系統中的壓力，或用于先導控制大型壓力控制器，以及壓力控制泵等應用。
內置放大器允許通過低功率指令信號（電壓或電流指令）控制壓力。放大器安裝在堅固的金屬外殼中，并通過工業標準的7針插頭進行電氣連接。工廠預設的調節確保閥間高度的重復性。
特點和優點：
閥門設計確保低滯后性和良好的重復性。
自排氣設計，簡化了安裝，并確保了穩定的性能。
當用于先導大型泄壓閥或減壓閥時，可獲得較低的最小壓力，同時對階躍輸入信號具有快速穩定的響應。
車載坡道調節
An electro-hydraulic proportional relief valve used to regulate pressure in hydraulic systems in proportion to an applied electrical input.
These open-loop, single-stage valves can be used to directly control pressure in low-flow systems, pilot control large pressure controllers, and pressure control pumps.
A built-in amplifier allows pressure control via a low-power command signal (voltage or current). The amplifier is housed in a rugged metal housing and connects electrically via an industry-standard 7-pin connector. Factory-set adjustments ensure high valve-to-valve repeatability.
Features and Benefits:
The valve design ensures low hysteresis and excellent repeatability.
The self-venting design simplifies installation and ensures stable performance.
When used as a pilot-operated large pressure relief or reducing valve, a low minimum pressure can be achieved while providing a fast, stable response to step input signals.
On-board ramp adjustment
VICKERS閥KBCG-3系列其他常用型號：
VICKERS KBCG-3-350D-Z-M1-2-A-PE7-H1-11
VICKERS KBCG-3-40D-Z-M1-2-A-PE7-H1-11
VICKERS KBCG-3-100D-Z-M1-2-A-PE7-H1-11
VICKERS KBCG-3-160D-Z-M1-2-A-PE7-H1-11
VICKERS KBCG-3-250D-Z-M1-2-A-PE7-H1-11
VICKERS KBCG-3-350D-Z-M1-2-A-PC7-H1-11
VICKERS KBCG-3-350D-Z-M1-2-A-PH7-H1-11
VICKERS KBCG-3-350D-Z-M1-2-A-PR7-H1-11
VICKERS KBCG-3-350D-Z-M1-1-A-PE7-H1-11
VICKERS KBCG-3-350D-Z-M2-2-A-PE7-H1-11
VICKERS KBCG-3-350D-Z-M2-1-A-PE7-H1-11
VICKERS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS閥KBCG-3-350D-Z-M1-2-A-PE7-H1-11的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
