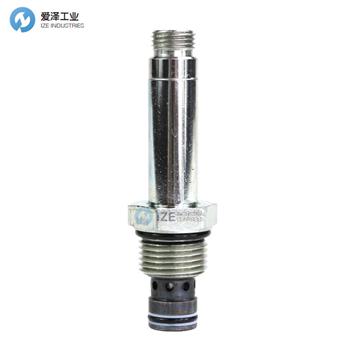

DELTROL閥DSU2-100-2NOP系列技術規格
Max Operating Pressure (psi) | 3000 |
Max Operating Pressure (bar) | 207 |
Flow gpm | 16 |
Flow lpm | 60.6 |
Cavity | 100-2 |
Coil | Series 10 K-Coils (External Frame)，Series 10 S-Coils (Internal Frame) |
Valve Style | Poppet |
Operating Pressure: | 3000 PSI (207 Bar) |
Flow: | See PRESSURE DROP VS. FLOW graph. |
Internal Leakage: | 5 drops/min. max. at 3000 PSI (207 Bar) |
Temperature： | -30° F to +250° F (-35°C to +120° C) |
Coil Duty Rating: | Continuous from 85% to 110% of rated voltage. |
Current Draw: | 12 VDC is 1.8 amps. |
Minimum Pull-In Voltage: | 85% of rated voltage at 3000 PSI (207 Bar) |
Response Time: | 80% of final change of state with 100% voltage supplied at 100% of nominal flow rating. |
Pull-In: | 12 VDC 25 m. sec. |
Drop-Out: | 12 VDC 30 m. sec. |
Recommended Filtration: | Critical Application-ISO 17/15/13 |
Fluids: | Mineral-based fluids. For other fluid compatibility consult factory. |
In-Line Body Material: | Anodized 6061T6 aluminum alloy rated at 3000 PSI (207 Bar). |
DELTROL閥DSU2-100-2NOP系列介紹
描述
這是一款設有正向關閉功能的閥芯式閥門，專為負載保持應用設計。
操作
當未通電時，彈簧式球塞（DSV2-100-2NOP）開啟，允許流體從?流向?。
當通電時，球塞關閉，阻止從?到?的流動。在此狀態下，閥芯允許在克服電磁線圈力（50 PSI或3 Bar）后，流體從?反向流向?。
特點與優點
連續工作電磁閥
硬化的球塞和推桿，確保長壽命和低泄漏
高效濕式電樞設計
閥芯可以實現電壓互換
提供多種線圈電壓和接線方式
標配過濾網
行業通用腔體設計
Description
A cartridge valve designed with positive shut off to be used in load holding applications.
Operation
When de-energized, the DSV2-100-2NOP poppet is open to allow flow from ? to ?.
When energized, the poppet closes to block flow from ? to ?. In this condition, the cartridge allows reverse flow from ? to ? after overcoming the solenoid force - 50 PSI (3 Bar).
Features and Benefits
Continuous-duty solenoid.
Hardened poppet and plunger for long life and low leakage.
Efficient wet-armature construction.
Cartridges are voltage interchangeable.
Optional coil voltages and terminations.
Filter screen standard.
Industry common cavity.
DELTROL限流閥其他常用型號：
DELTRO DSU2-100-2NOP-N-A5C-B-100-2-3N
DELTRO DSU2-100-2NOP-N
DELTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
