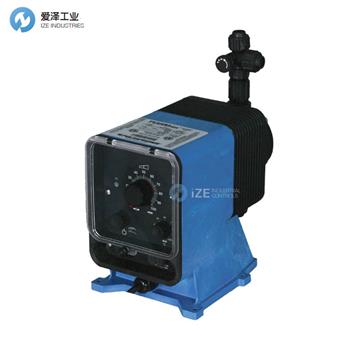

PULSAFEEDER泵E Plus系列技術參數
Pump Head Materials | GFPPL, PVC, PVDF, 316 SS |
Fitting Material Available | GFPPL, PVC, PVDF |
Bleed Valve | Same as fitting and check valve selected (except 316SS) |
Turndown Ratio | 100: 1 |
Seat O-Rings Available | PTFE, CSPE, Viton |
Balls Available | Ceramic, PTFE, 316 SS, Alloy C |
Diaphragms | PTFE-faced CSPE-backed |
Tubing Available | Clear PVC, White PE, PVDF |
Power Input | 115 VAC – 50/60 HZ -1 ph, 230 VAC – 50/60 HZ – 1 ph |
Peak Input Power | 300 Watts, Average Input Power At Max SPM: 130 Watts |
Average Current Draw | 115 VAC: Amps – 1.0, 230 VAC: Amps – 0.5 |
PULSAFEEDER泵E Plus系列介紹
Pulsation E Plus 系列泵標配手動控制沖程長度和沖程頻率，并可選擇 4-20mA 或外部步進輸入進行自動控制。共有 20 種不同型號，壓力可達 300 psi (21 bar) @ 3 gpd (0.5 lph)，流量可達 600 gpd (94.6 lph) @ 30 psi (2 bar)，調節比為 100:1。計量性能可重復性在最大容量的 ± 2% 以內。
特點：
可通過 4-20mADC 直接或外部起搏進行自動控制，并具有停止功能
通過在線可調沖程速率和沖程長度進行手動控制
自動關閉手動開關
高可靠定時電路
防止電壓和電流擾亂的電路保護
面板安裝保險絲
電磁閥通過熱過載保護，具有自動復位功能
適用于室內外防水應用
指示燈面板安裝
導向球止回閥系統可減少回流并增強出色的啟動特性
采用耐用、無泄漏的排氣閥組件（標準），安全、輕松地進行灌注
The Pulsation Series E Plus offers manual control over stroke length and stroke rate as standard with the option to choose between 4-20mA and external pace inputs for automatic control. Twenty distinct models are available, having pressure capabilities to 300 psi (21 bar) @ 3 gpd (0.5 lph), and flow capacities to 600 gpd (94.6 lph) @ 30 psi (2 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 2% of maximum capacity.
Features:
Automatic control available with 4-20mADC direct or external pacing with stop function
Manual control by on-line adjustable stroke rate and stroke length
Auto-Off-manual switch
Highly reliable timing circuit
Circuit protection against voltage and current upsets
Panel mounted fuse
Solenoid protection by thermal overload with auto-reset
Water resistant for outdoor and indoor applications
Indicator lights panel mounted
Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
Safe and easy priming with durable leak-free bleed valve assembly (standard)
PULSAFEEDER泵其他常用型號：
PULSAFEEDER LPH6MB-VTC3-XXX
PULSAFEEDER LPH6MA-VTC5-XXX
PULSAFEEDER LPH6MA-VTT4-XXX
PULSAFEEDER LPH6SA-VTC6-XXX
PULSAFEEDER LPH6MA-VTT4-XXX
PULSAFEEDER LPK3SA-VTCJ-XXX
PULSAFEEDER LPK2SA-WTC1-XXX
PULSAFEEDER LPB2SA-PTCG-XXX
PULSAFEEDER LPA2SA-PHCA-XXX
PULSAFEEDER LPD4MA-VVT1-XXX
