MP FILTRI濾芯LDD025BAC6A25NP01技術參數
Series | LDD |
Size | 025 Element according to DIN 24550-T3 DN250 |
Bypass valve | B 3.5 bar |
Seals and treatments | A NBR |
Connections | C G 1 1/2” |
connection for differential indicator | 6 With plugged connection |
Filtration rating (filter media) | A25 lnorganic microfiber 25 um |
Element Δp | N 20 bar |
Execution | P01 MP Filtri standard |
MP FILTRI濾芯LDD系列介紹
LDD 是一系列多功能低壓雙聯過濾器，帶有一體化切換功能，可在不停機的情況下更換濾芯。該過濾器通過液壓接頭直接連接到系統管路。
可選特性：
內螺紋連接最大至 1 1/2”，法蘭連接最大至 1 1/2”，最大流量可達 330 升/分鐘
濾芯設計符合 DIN 24550 標準
精細過濾等級，有助于提升系統清潔度
除水元件，可去除液壓油中的游離水。欲了解更多信息，請參閱污染管理文檔及專用宣傳冊
平衡閥集成在切換手柄內，切換前可均衡殼體壓力
旁通閥，用于緩解過濾材料上的過大壓差
排氣口，防止濾器中的空氣進入系統
排液口，便于維護前排凈殼體內液體
可選取樣口，可用于取樣或連接其他儀器
機械、電氣及電子型差壓堵塞指示器
典型應用：
設備停機會帶來高成本的系統
設備停機會造成安全隱患的系統

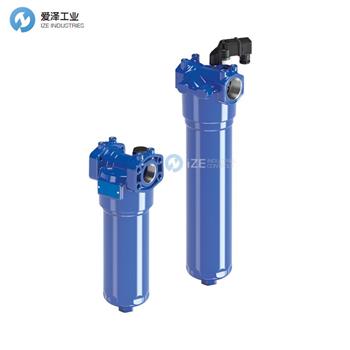

LDD is a range of versatile low pressure duplex filter with integrated changeover function to allow the filter element replacement without the system shut-down.
They are directly connected to the lines of the system through the hydraulic fttings.
Available features:
Female threaded connections up to 1 1/2”and flanged Connections up to11/2", for a maximum flow rate of 330 /min
Filter element designed in accordance with DIN 24550 regulation
Fine filration rating, to get a good cleanliness level into the system
Water removal elements, to remove the free water from the hydraulic fluid. For further information, see the Contamination Management document and the dedicate leaflet.
Balancing valve integrated in the changeover lever, to equalize the housing pressure before the switch
Bypass valve, to relieve excessive pressure drop across the filter media
Vent ports, to avoid air trapped into the filter going into the system
Drain ports, to remove the fluid from the housing prior the maintenance work
Optional sampling ports, to get samples of fluid or to connect additional instrument to the system
Visual, electrical and electronic dfferential clogging indicators
Common applications:
Systems where shut down causes high costs
Systems where shut-down causes safety issues
MP FILTRI濾芯其他常用型號：
MP FILTRI LDD025BAC6A25NP01
MP FILTRI LDD 016
MP FILTRI LDD 025
MP FILTRI LDD 040
