BUCHER閥RKVG-G-10-05技術參數

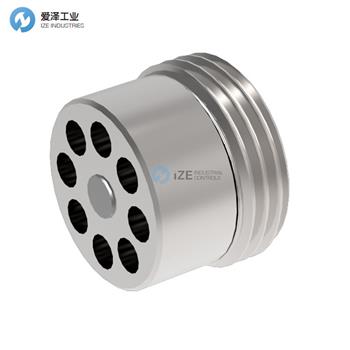

RKVG | check valve, screw-in type, spherical poppet |
M | screw-in thread M8x0,75 |
03 | nominal size 03, QNominal 6 l/min |
05 | opening pressure 0,5 bar (Item no.: 170628700) |
BUCHER閥RKVG系列介紹
描述
RKVG系列球形止回閥采用球塞式，具有非常高的壓力荷載能力和極低的壓差（Δp）。閥門具有金屬對金屬密封的切削邊緣，消除了軟密封，因此無需考慮溫度和壓力介質的影響。彈簧驅動的球塞止回閥非常堅固，密封性能極佳且抗污染性強。閥座、球塞和閥體均經過硬化處理，密封面具有高精度機械加工工藝以增強性能。該閥門在螺紋連接方向（A到B）可防止流動，在相反方向開啟?？捎玫墓Q尺寸有03、04、06、08、10和16。
螺紋插裝式閥
極高的最大流量（Qmax）與極低的壓差（Δp）
無軟密封，不受溫度和壓力介質影響
在關閉狀態下幾乎無泄漏
高壓力等級
Description
The RKVG series spherical poppet-type check valve is characterized by very high pressure load capacity and extremely low Δp. The valve has a cutting edge for metal-to-metal sealing. By eliminating the soft seal, the valve can be applied without regard to tempera‐ ture and pressure fluid.
The spring-loaded poppet-type check valve very robust, extremely leak-proof and insensitive to contamination. Valve seat, poppet and body are hard‐ ened. The properties of the sealing faces have been enhanced by precision mechanical processing. The valves prevent flow in the screw-in direction (A to B) and open in the opposite direction. The valve is avail‐ able in nominal sizes 03, 04, 06, 08, 10 and 16.
Screw-in cartridge valve
Exceptionally high Qmax with extremely low Δp
No soft seal, thus not depending on temperature and pressure fluid
Virtually leak-proof in closed condition
High pressure Rating
BUCHER閥RKVG系列其他常用型號：
BUCHER RKVG-G-10-05
BUCHER RKVG-G-10-02
BUCHER VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUCHER閥RKVG-G-10-05的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUCHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
