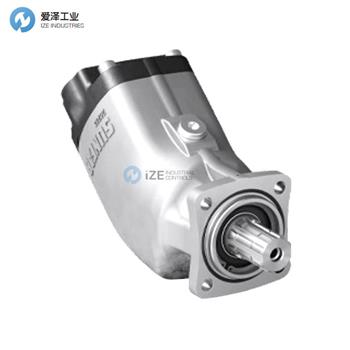

SUNFAB泵SAP-012L-N-DL4-L35-S0S-000技術參數

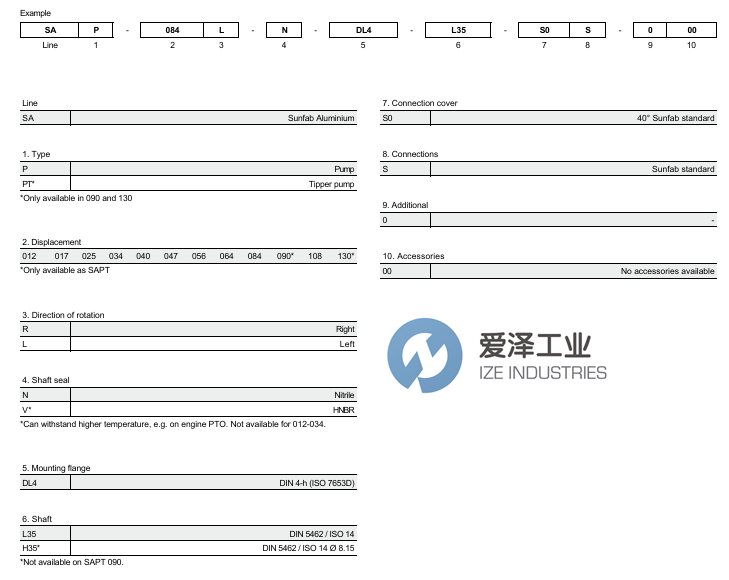

Line | SA = Sunfab Aluminium |
Type | P = Pump |
Displacement | 012 |
Direction of rotation | L = Left |
Shaft seal | N = Nitrile |
Mounting flange | DL4 = DIN 4h (ISO 7653D) |
Shaft | L35 = DIN 5462 / ISO 14 |
Connection cover | S0 = 40° Sunfab standard |
Connections | S = Sunfab standard |
Additional | 0 |
Accessories | 00 = No accessories available |
SUNFAB泵SAP系列介紹
SAP/SAPT 012130 DIN 系列是輕型固定排量殼體柱塞泵，適用于要求嚴苛的移動液壓系統。
SAP 012108 DIN 的排量范圍為 12-108 cm3/rev，最高壓力為 400 bar。它是一款現代化的緊湊型泵，可滿足市場對流量性能、壓力、效率和小安裝尺寸的高要求。該泵可直接安裝在動力輸出裝置上，也可通過中間軸安裝在車架支架上。
SAPT 090, 130 是 SAP 系列的新增產品，支持更大的流量，最高壓力可達 300 bar。非常適合需要高流量和高工作壓力的應用。
其他優勢：
輕質金屬外殼設計
全轉速范圍內運行平穩
材料要求高，使用壽命長
耐腐蝕輕質金屬外殼
外殼散熱能力更強，發熱量更低
SAP/SAPT 012130 DIN is a series of light weight casing piston pumps with a fixed displacement for demanding mobile hydraulics.
SAP 012108 DIN covers the displacement range 12-108 cm /rev. at a maximum pressure of 400 bar. It is amodern, compact pump which meets the market’s high demands on flow performance, pressure, efficiency and small installation dimensions. The pump is either mounted directly on the power takeoff or on a frame bracket via an intermediate shaft.
SAPT 090, 130 is an addition to the SAP series that supports larger flows and pressure up to 300 bar. Ideal for applications that require both a high flow and a high working pressure.
Other advantages:
Light weight metal casing design
Smooth operation over the entire speed range
Long life due to high demands on materials
Corrosion free light metalhousing
Less heat generation due to better ability to
dissipate heat through housing
SUNFAB泵SAP系列選型
SUNFAB泵SAP系列其他常用型號：
SUNFAB SAP-012L-N-DL4-L35-S0S-000
SUNFAB SAPT130L-N-DL4-L35-S0S-000
SUNFAB SAP-047L-N-DL4-L35-S0S-000
SUNFAB SAP-017L-N-DL4-L35-S0S-000
SUNFAB SAP-025L-N-DL4-L35-S0S-000
SUNFAB SAP-034L-N-DL4-L35-S0S-000
SUNFAB SAP-040L-N-DL4-L35-S0S-000
SUNFAB SAP-047L-N-DL4-L35-S0S-000
SUNFAB SAP-056L-N-DL4-L35-S0S-000
SUNFAB SAP-064L-N-DL4-L35-S0S-000
SUNFAB SAP-084L-N-DL4-L35-S0S-000
SUNFAB SAP-108L-N-DL4-L35-S0S-000
SUNFAB pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUNFAB泵SAP-012L-N-DL4-L35-S0S-000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUNFAB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
