APTECH調壓閥AP1900系列技術參數
Operating Parameters | |
Source pressure | vacuum to 3,500 psig (241 bar) |
Delivery pressure AP 1901 AP 1902 AP 1906 AP 1910 AP 1915 | 1 to 10 psig (0.07 to .7 bar) |
Proof pressure | 150% of operating pressures |
Burst pressure | 300% of operating pressures |
Other Parameters | |
Inlet/outlet connectors | 1/4, 3/8 or 1/2 inch face seal or tube weld |
Bonnet port | 1/8 inch NPT |
Flow coefficient (Cv) | 0.13 (HF = 0.16) |
Internal volume | 0.82 in3 (13.5 cm3) |
Operating temperature | ﹣40° to +160°F (-40° to +71°C) |
Surface finish | 15 μin Ra max / 10 μin. Ra avg. |
Inboard leakage | 2 x 10-10 sccs |
Outboard leakage | 2 x 10-9 sccs He at 1,500 psig inlet pressure |
Leakage across seat | 4 x 10-8 sccs He at 1,000 psig inlet pressure |
Installation | surface or panel (optional) |
Supply pressure effect | 0.25 psig per 100 psig source pressure change |
APTECH調壓閥AP1900系列產品介紹
單級調壓閥，適用于圓柱形的使用點應用。入口壓力范圍從真空到4,500 psig（310bar），而出口壓力范圍從絕對到500 psig（34 bar）。流量額定值從幾sccm到5,000 slpm的N2，線徑從從英寸到1英寸。
APTECH調壓閥AP 1915S 4PW FV8 FV8 2 2MPA選型

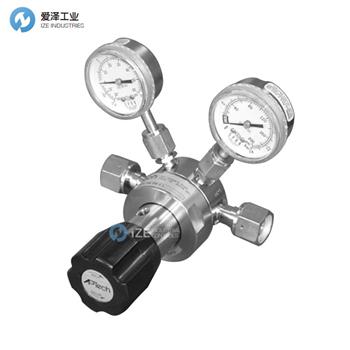

APTECH調壓閥AP 1915S 4PW FV8 FV8 2 2MPA
愛澤工業(IZE INDUSTRIES)特價經銷、常用APTECH調壓閥型號：
APTECH AP9030S 2PW FV12 FV12 HR VS
APTECH AP 1915S 4PW FV8 FV8 2 2MPA
APTECH AP1915S 2PW FV8 MV8
APTECH AP1925S 2PW FV8 MV8 PS
APTECH AP1915S 2PW FV8 FV8
APTECH AP1915S 4PW FV8 FV8 2 2MPA
APTECH Pressure regulating valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于APTECH調壓閥AP 1915S 4PW FV8 FV8 2 2MPA的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for APTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
APTECH調壓閥AP1900G系列AP 1915S 4PW FV8 FV8 2 2MPA選型及介紹
