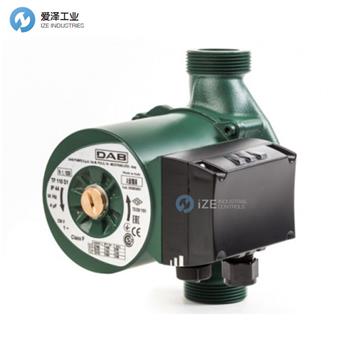

DAB循環泵A/B/D系列產品參數
TECHNICAL DATA | |
Operating range: | from 1 to 12 m3/h with head up to 11 metres. |
Pumped liquid temperature range: | from -10°C to +110°C. |
Pumped liquid: | clean, free from solids and mineral oils, not viscous, chemically neutral, close to the characteristics of water (max 30% glycol). |
Maximum working pressure: | 10 bar (1000 kPa). |
Protection level: | IP 44 |
Insulation class: | F |
Cable grommet: | PG 11 |
Installation: | with motor axis horizontal. |
Standard voltage input: | single-phase 230 V / 50 Hz |
DAB循環泵A/B/D系列介紹
應用
此泵適用于小型社區集中供暖和空調系統中的冷熱水循環，可用于民用和工業應用，適用于閉式加壓系統或開式系統。
結構特點
泵體由鑄鐵制成，電機采用壓鑄鋁。
葉輪采用技術聚合物制成，電機軸由硬化不銹鋼制成，并通過石墨軸承潤滑。
泵體帶有螺紋口。
轉子保護套、定子套和閉合法蘭采用不銹鋼制成。
兩極異步濕轉子電機具有三速操作。
單相版本中帶有集成溫度探頭。
APPLICATIONS
Pump for hot or cold water circulation in small community central heating and air conditioning systems for both civil and industrial applications, of the closed circuit pressurized or open circuit type.
CONSTRUCTION FEATURES
Pump body in cast iron and motor in die cast aluminium.
Impeller in technopolymer, motor shaft in hardened stainless steel held in graphite bearings lubricated by the pumping medium.
Pump body with threaded ports.
Rotor protective jacket, stator jacket, and closing flange in stainless steel.
The two-pole asynchronous wet rotor motor features three-speed operation.
Integral thermal probe in single-phase version.
DAB循環泵A/B/D系列其他常見型號：
DAB A50/180M
DAB A50/180 XM
DAB A50/180T
DAB A50/180 XT
DAB A56/180M
DAB A56/180 XM
DAB A56/180T
DAB A56/180XT
DAB A80/180M
DAB A80/180XM
DAB A80/180T
DAB A80/180XT
DAB A110/180 M
DAB A110/180XM
DAB A110/180T
DAB A110/180XT
DAB A56/180 M230/50
DAB Circulation pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DAB循環泵A56/180 M230/50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DAB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
DAB循環泵A/B/D系列A56/180 M230/50產品參數
