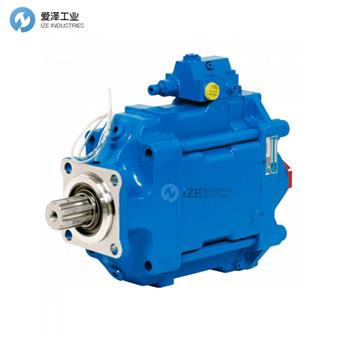

HYDRO LEDUC泵TXV1500518600技術參數

HYDRO LEDUC泵TXV系列產品描述

產品描述：

專門為滿足卡車液壓系統需求而設計的 TXV 可變排量泵，配有 LS（負載感應）控制，可根據應用需求調節流量。泵只會調節提供每個動作所需的準確流量。由于其緊湊的外形尺寸，可以直接法蘭安裝在 PTO（電機或變速箱）上，或通過輸入驅動軸連接。TXV 泵的最大排量為 40 到 150 cc/轉，可在高達 400 bar 的工作壓力下運行。

特性和優勢：

配備“負載感應”調節

法蘭符合 DIN ISO14（DIN 5462）標準

提供市場上獨有的 150 cc/轉版本

運行壓力根據型號可達 400 bar

在全排量時的速度范圍為 1900 至 3000 rpm

緊湊設計

可選通軸版本（用于驅動第二個泵）

可提供恒定扭矩控制（壓力 x 流量 = 恒定）

可根據要求提供最大排量調節螺釘

標配 FKM 密封

應用：

卡車設備（起重機、林業起重機、垃圾車、撒布機和除雪車及其他市政工程設備）

軍用

農業機械

Description of the product :

Specifically designed to meet the needs of truck hydraulics, the TXV variable displacement pumps with LS (Load Sensing) control allow flow regulation to suit the application requirements. The pump regulates to only supply the correct flow for each movement. Its compact size envelope enables direct flange mounting on the PTO (motor or gearbox), or via an input drive shaft. The TXV pump is available in max. displacements of 40 to 150 cc/rev. and can operate at working pressures of up to 400 bar.

Characteristics and advantages :

fitted with “l(fā)oad sensing” regulation,

flange according to DIN ISO14 (DIN 5462),

available in 150 cc/rev. (unique on the market),

operating pressure up to 400 bar depending on model,

speed at full displacement from 1900 to 3000 rpm,

compact design,

through shaft version available (to drive a second pump),

available with constant torque control (Pressure x flow = constant),

optional maximum displacement adjustment screw on request,

fitted with FKM seals as standard.

Applications :

truck equipment (handling cranes, forestry cranes, refuse trucks, spreaders and snow removal vehicles, and other public works equipment),

military,

agricultural machinery.

HYDRO LEDUC泵TXV系列其他常用型號：

HYDRO LEDUC TXV 40 0512950

HYDRO LEDUC TXV 40 0512955

HYDRO LEDUC TXV 60 0512500

HYDRO LEDUC TXV 60 0512505

HYDRO LEDUC TXV 75 0512510

HYDRO LEDUC TXV 75 0512515

HYDRO LEDUC TXV 92 0512520

HYDRO LEDUC TXV 92 0512525

HYDRO LEDUC TXV 120 0515700

HYDRO LEDUC TXV 120 0515705

HYDRO LEDUC TXV 130 0515300

HYDRO LEDUC TXV 130 0515515

HYDRO LEDUC TXV 150 0518600

HYDRO LEDUC TXV 150 0518605

HYDRO LEDUC pump NEW + ORIGINAL+ ONE YEAR WARRANTY
