WALTHER閥VMS-02系列技術參數
control air pressure: | 6 [bar] |
material pressure: | max. 100 [bar] |
weight: | 375 [g] |
dimensions KV-version (l x w x h): | 144x15x82 [mm] |
dimensions LV-version (l x w x h): | 162x15x82 [mm] |
connection ?material“: | G1/8 |
connection ?control air“: | screw joint for hose 6/4 |
available nozzle diameters: | 0,2 / 0,3 / 0,5 / 0,8 / 1,0 / 1,2 / 1,5 / 2,0 / 2,5 [mm] |
material - nozzle: | stainless steel - needle: carbide |
sealings: | Viton |

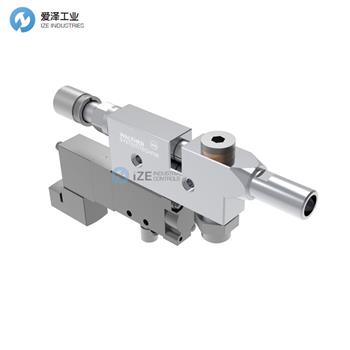

WALTHER閥VMS-02系列介紹
使用 VMS-02 系列全噴射閥，將看到一種堅固且切換速度非?？斓臍鈩?dòng)控制應用閥，它適用于不同介質和各種粘度的連續或間歇應用，特別是密封劑、膠水和油。
用戶欣賞其高精度和卓越的施膠量重復性；他們也選擇 VMS-02 全噴射閥，因?yàn)樗亓枯p、設計緊湊。它們非常適合高速移動，并可集成到安裝空間有限的機器或機器人中。
VMS-02 系列閥門設計用于高達 100 bar 的物料壓力，并配備直接法蘭連接的兩位五通閥，在相應工作條件下，其速度可達到每秒 20 次。物料以全噴射方式排出。這款多功能應用閥門可選配加熱板、閥門狀態傳感器、不同的噴嘴和針頭以及多種適配的噴嘴延長件，從而提供更高的靈活性。
適用于不同介質，粘度范圍廣
可更換噴嘴和計量針，靈活性 高
可選加熱板可用于閥門回火
With a Full-Jet Valve of the VMS-02 series, you will refer to a robust and very fast switching, pneumatically controlled application valve which is suitable for the continuous or intermitting application of different media and a broad range of viscosity, in particular for sealing compounds, glues and oils.
User appreciate the high precision and excellent repeatability of the applied quantity; they also select the VMS-02 full-jet valves due to their low weight and compact design. They are ideal for high traversing speeds and integration in machines or robots with only little space for installation.
Valves of the VMS-02 series were designed for material pressures up to 100 bar and with the directly flanged 5/2-way valve, they can reach up to 20 tacts per second under the respective operating conditions. The discharge of the material is carried out as a full jet. Heating plates, a sensor for the valve status, different nozzles and needles as well as multiple adapted nozzle extensions are available for this versatile application valve and offer additional flexibility.
broad spectrum of use for different media and wide range of viscosity
high flexibility due to replaceable nozzle and dosing needle
optional heating plate available for valve tempering
WALTHER閥其他常用型號：
WALTHER VMS-02
WALTHER VMS-02-FNN-N00-00-LV-M
WALTHER VMS-02-ENN-N00-00-LV-M
WALTHER VMS-02-ENN-T00-00-LV-M
WALTHER Dispensing valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WALTHER閥VMS-02 的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WALTHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
WALTHER閥VMS-02技術參數
