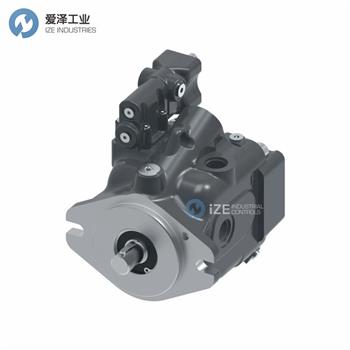

DANFOSS泵222AK00192B AEC028R05ADC2AB342000000200100CD01B技術參數
Characteristic | Value |
Aux mount output shaft | NO AUXILIARY MOUNT |
Brand | Danfoss |
CODE TITLE | 220 SERIES MOBILE PISTON PUMP |
Control special features | NO CONTROL SPECIAL FEATURES |
Controller type | PCLS WMETRIC LS PORT (LEFT) |
Design Code | SECOND DESIGN |
Diagnostic pressure ports | M12 X1.5 METRIC O-RING-PLUGGED |
Displacement | 28.0 CM3R [1.71 IN3R] |
Drain port size location | M22 X 1.5 METRIC O-RING-TOP |
Flow comp rpc setting | [250-290 lbf/in2] |
Front mounting input shaft | 2 BOLT B, .88" DIA SHAFT |
Identification packaging | MARK EATON PN AND MODEL CODE |
Input shaft rotation | RIGHT HAND ROTATION (CW) |
Main ports size location | SP INM42" OUT27" ISO MET |
Maximum displacement option | EXT MANUAL ADJ (SET AT MAX) |
PRESSURE COMP SETTING | [3400-3500 lbf/in2] |
PUMP SPECIAL FEATURES | NO PUMP SPECIAL FEATURES |
Paint | BLUE PRIMER PER SPEC 209-13CD |
Secondary comp setting | NO SECONDARY COMP SETTING |
Shaft seal | FLUOROCARBON RUBBER SHAFT SEAL |
DANFOSS泵X20系列其他常用型號：
DANFOSS 222AK00292B
DANFOSS 222AK00274B AEC018R48ABL1AA261400000200100CD01B
DANFOSS 222AK00264B
DANFOSS 222AK00261B
DANFOSS 222AK00260B
DANFOSS 222AK00259B AEC018R50AAL1AC280000000
DANFOSS 222AK00255B AEC018R50ABL1AA262000000 2001000B01B
DANFOSS 222AK00220B
DANFOSS 222AK00212B
DANFOSS 222AK00192B AEC028R05ADC2AB342000000200100CD01B
DANFOSS PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS泵222AK00192B AEC028R05ADC2AB342000000200100CD01B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
