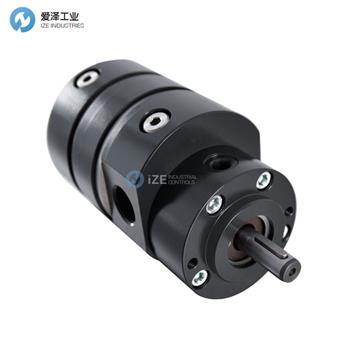

BEINLICH泵ZPDA1-1,20-KI-R-F-100/HK-0/GL-SP/SB技術參數
Numberofstages | 1 |
Gearingtype | External,straight |
Theoreticaldisplacement | 1.2cm/rev |
Suctionconnection | S=010mm |
Dischargeconnection | D=08mm |
Speed | 10-200rpm |
Directionofrotation | RIGHT(includingdriveshaft) |
Inletpressure | 0-15bar |
Operatingpressure | 200barmax. |
Differentialpressure | 200barmax. |
Sealingtype | Mechanicalsealwithbarrierchamber |
Fillers | None |
Ambienttemperature | -30°Cmin./+60°Cmax. |
ClearanceB | Viscosityrange100-2,000mPa*s |
Materials | |
Housing | Nitridingsteel |
Centerplate | Nitridingsteel |
Gears | Hardenedstainlesssteel1 |
Shafts | Nitridingsteel |
Bearings | High-performancematerial20 |
Sealmaterials | FKM |
BEINLICH泵ZPDA系列介紹
ZPDA 外嚙合齒輪泵
ZPDA 泵專為啟動-停止的計量應用而設計。低脈動齒輪設計提供恒定的流量，并能非?？焖俚亟毫?。
根據液體粘度調整的內部間隙保持在幾微米以內，以確保即使在高達200巴的高壓差下也能實現最高效率。
根據應用需求，濕潤部件可提供DLC涂層，以增加耐腐蝕性和耐磨粒性。此外，還可直接在后板安裝VSE流量計，以實現閉環控制。
性能數據
排量：0.1 至 26.0 cc/轉
速度：1 至 200 轉/分鐘
粘度：1 至 1,000,000 mPas
溫度：-20°C 至 +150°C（標準版）
特殊設計可用于不同的溫度。
工作壓力：最大200bar（取決于轉速和粘度）
應用領域
不含填料的介質計量：聚氨酯、異氰酸酯、聚醇、催化劑、添加劑、硅樹脂、燃料、粘合劑、油類、熱熔膠、涂料
ZPDA external gear pump
ZPDA pumps are specifically designed for start-stop dosings. The low pulsation gear design provides constant flow with very rapid pressure build-up.
Internal clearances based on fluid viscosities are held within a few microns to insure the highest efficiency possible, even at high differential pressures up to 200 bar.
Depending on the application, DLC coatings are available for the wetted parts to provide additional corrosive resistance and abrasive particle resistance as well. Direct mounting of a VSE flow meter on the rear plate is also available for closed loop control.
Performance data
Displacements 0.1 up to 26.0 cc/rev
Speed 1 up to 200 rpm
Viscosity 1 up to 1,000,000 mPas
Temperature -20°C up to +150°C (standard version)
Special designs are available for deviating temperatures.
Operating pressure max. 200 bar (depending on rotation speed and viscosity)
Application areas
Dosing of media without fillers: polyurethanes, isocyanate, polyol, catalyst, additives, silicones, fuels, adhesives, oils, hotmelt, paints
BEINLICH泵其他常用型號：
BEINLICH ZPDA1-1,20-KI-R-F-100/HK-0/GL-SP/SB
BEINLICH ZPDA 1-1,20-EE-R-FCV/HK-0/R/K/3F-SP/SC
BEINLICH ZPDA 1-0,60-EE-R-FCV/HK-1/R/K/3F-SP/SB
BEINLICH ZPDA 1-4.80-EE-R-F/HK-0/3F-SP/SC
BEINLICH PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BEINLICH泵ZPDA1-1,20-KI-R-F-100/HK-0/GL-SP/SB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BEINLICH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
