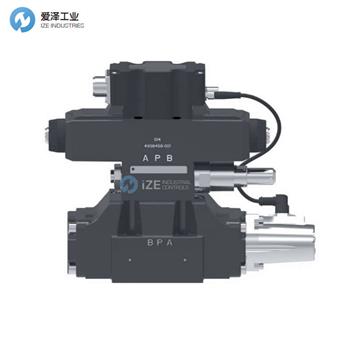

VICKERS閥KBFDG5V-7-33C230N-X-M1-PE7-H1-20技術參數
Valve Type | [K] Proportional valve |
Integral amplifier | [B] Integral Amplifier "B" Series |
Feed back arrangement | [F] From main stage |
Control Type | [D] Directional valve |
Mounting | [G] Subplate mounted |
Operation | [5] Solenoid controlled, pilot operated |
Pressure rating | [V] 315 bar (4500 psi) Size 05 |
Mounting Interface Size (ISO 4401) | [7] NFPA D07, CETOP 7 |
Spool Type, flow rating and metering | [33C230N] Spool Type, flow rating and metering, 230 L/min (59.8 US gpm) |
Pilot Supply | [X] Internal |
Control signal | [M1] ±10V |
Electrical Connection | [PE7] 7 pin connector with plug supplied |
Coil Identification | [H] 24V |
Pilot drain port | [1] 4 bar (58 psi) |
Design Number | [20] 20 Series |
VICKERS閥KBFDG5V系列介紹
Vickers 比例閥適用于高達 350 bar (5000 psi) 的工作壓力和高達 375 l/min (99 USgpm) 的流量。它們旨在提供與指令信號成比例的受控油流，并帶有閥芯位置反饋以提供精確控制。
特點
? 工廠密封調節提高了閥間可重復性。
? 集成放大器的閥門作為經過性能測試的整套產品進行選擇、訂購、交付和安裝。
? 電子反饋 LVDT 確保精確的閥芯位置控制。
? 經過振動和沖擊測試。
? 標準 24V DC 電源，公差范圍寬。
? 廣泛的閥芯和流量選項。
? 標準 ±10 V DC 或 4-20 mA 指令信號。
? 減少和簡化安裝接線。
? 標準 7 針連接器。
? 維修時可輕松拆卸和更換閥門。
? 輔助功能模塊支持。
? 完全 CE/UKCA 電磁兼容性。
? IP65 和 IP67 環境保護等級。
? 可選閥門啟用功能。
? 故障安全功能。
Vickers proportional valves are suitable for working pressures up to 350 bar (5000 psi) and flow rates to 375 l/min (99 USgpm).They are designed to provide a controlled oil flow in proportion to a command signal, with spool position feedback to provide accurate control.
Features
? Factory-sealed adjustments increase valve-to-valve reproducibility.
? Valve with integrated amplifier selected, ordered, delivered and installed as one performance-tested package.
? Electronic feedback LVDT ensures accurate spool position control.
? Vibration and shock tested.
? Standard 24V DC supply with wide tolerance band.
? Wide range of spool and flow rate options.
? Standard ±10 V DC or 4-20 mA command signals.
? Installation wiring reduced and simplified.
? Standard 7-pin connector.
? Simple valve removal and replacement for service.
? Supported by auxiliary function modules.
? Full CE/UKCA electromagnetic compatibility.
? IP65 and IP67 environmental protection rating.
? Optional valve enable function.
? Failsafe feature.
VICKERS閥KBFDG5V系列其他常用型號：
VICKERS KBFDG5V-7-33C230N-X-M1-PE7-H1-20
VICKERS KBFDG5V-5-2C70N45-X-M1-PE7-H1-11
VICKERS KBFDG5V-8-2C375N-X-M2-PE7-H1-10
VICKERS KBFDG5V-7-2c-150N85-X-M2-PC7-H1-10
VICKERS KBFDG5V-7-2C200N-EX-M2-PE7-H1-11
VICKERS KBFDG5V-5-2C95N-X-M1-PE7-H1-10
VICKERS KBFDG5V-7-2C200N-X-M1-PE 7-H1-20
VICKERS KBFDG5V 8 2C375N EX M1 PE7 H1 10
VICKERS KBFDG5V-8-2C375N-X-M1-PE7-H1-11
