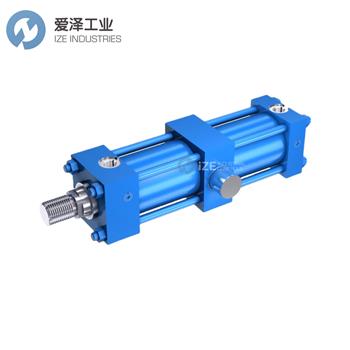

REXROTH液壓缸CD 70X 25/12-.125Z11/01HEUM44A R901054393技術參數
Type | [CD] Differential cylinder |
Piston ? (?AL) | [25] 25 mm |
Piston rod ? (?MM) | [12] 12 mm |
Stroke length | [125] 125 mm |
Design principle | [Z] Head and base connected to tie rod |
Component series | [11] |
Line connection/version | [01] Pipe thread according to ISO 228/1 |
Piston rod design | [H] Hardened and hard chromium-plated |
Piston rod end | [E] Internal thread |
End position cushioning | [U] Without |
Hydraulic fluid | [M] Seals, suitable for mineral oil according to DIN 51524 (HL, HLP) |
Line connection/position at head | [4] |
Line connection/position at base | [4] |
Seals | [A] Standard version |
REXROTH液壓缸CD70系列介紹
系列 70
組件系列 1X
標稱壓力 70 bar [7 MPa]
特點
? 16 種安裝方式
? 活塞直徑 (?AL) 25 ... 200 mm
? 活塞桿直徑 (?MM) 12 ... 140 mm
? 行程長度可達 3 m
Series 70
Component series 1X
Nominal pressure 70 bar [7 MPa]
Features
? 16 types of mounting
? Piston ? (?AL) 25 ... 200 mm
? Piston rod ? (?MM) 12 ... 140 mm
? Stroke length up to 3 m
REXROTH液壓缸CD70系列其他常用型號：
REXROTH CD70B50/22-200Z1X/01HBDM1-1A
REXROTH CD70X 25/12-.125Z11/01HEUM44A R901054393
REXROTH CD70B25/12-150Z1X/01HBUM1-1A
