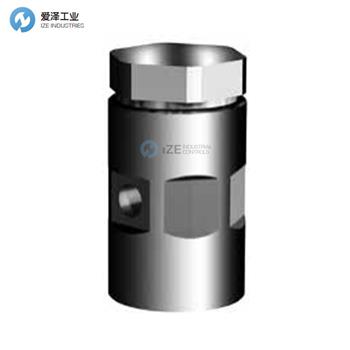

ARI控制閥CONA655 52.655規格描述
Figure | Nominal pressure | Material | NPS | Operating pressure PS | Inlet temperature TS | Set pressure | Kvs-value |
52.655 | PN16 | 1.4301 | Rp 1/2 | 13 barg | 400 °C | 7 mbar | 0,55 m3/h |
13 barg | 400 °C | ||||||
55.655 | PN40 | 1.4301 | Rp 1/2 | 21 barg | 220 °C | 7 mbar | 0,55 m3/h |
For ANSI versions refer to data sheet CONA?Components-ANSI | |||||||
Types of connection Other types of connection on request. | |
? System connection 2 Rp 1/2 (DIN EN10226-1) / NPT 1/2 (ANSI B1.20.1) | A dropping line can be connected. The line has to be led to an outlet. |
? Air inlet Rp 1/8 (DIN EN10226-1) / NPT 1/8 (ANSI B1.20.1) | |
Features | |
? Ventilation valve for pipelines, condensing vapour (steam) or liquid systems, where the system pressure should not fall below the atmospheric pressure. | |
? Vertical position, cap on top. | |
? System connection downwards. | |
Selection criteria | Example for order data |
? Operating pressure ? Nominal diameter / pressure | Vacuum breaker, System connection Rp, PN 40, NPS 1/2", |
? Flow quantity ? Material | ? Flow quantity ? Material |

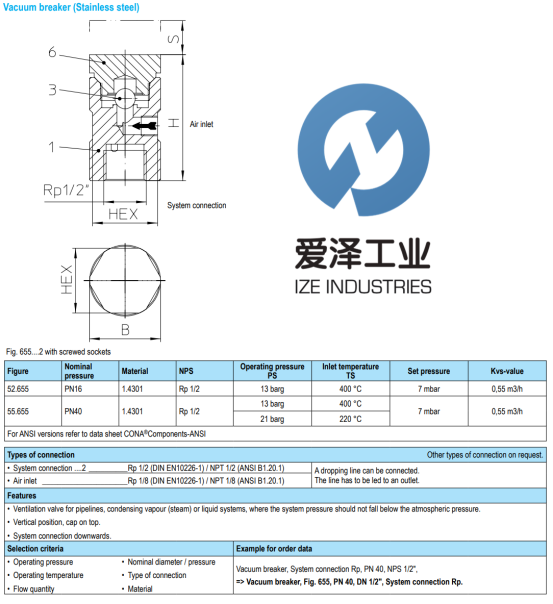

ARI控制閥CONA655 52.655技術數據
愛澤工業(IZEINDUSTRIES)特價經銷、常用ARI型號：
ARI CONA655 45.665
ARI CONA655 12.665
ARI CONA655 45.645
ARI CONA655 45.647 (Y)
ARI CONA655 45.650
ARI CONA655 45.650
ARI CONA655 22.656
ARI CONA655 34.656
ARI CONA655 35.656
ARI CONA655 54.656
ARI CONA655 55.656
ARI CONA655 52.655
ARI CONA655 55.655
ARI Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷qa售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ARI控制閥CONA655 52.655的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for于ARI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ARI控制閥CONA655 52.655技術數據
