ARI閥CHECKO-D 55.001規格描述

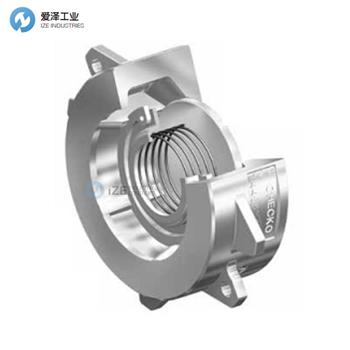

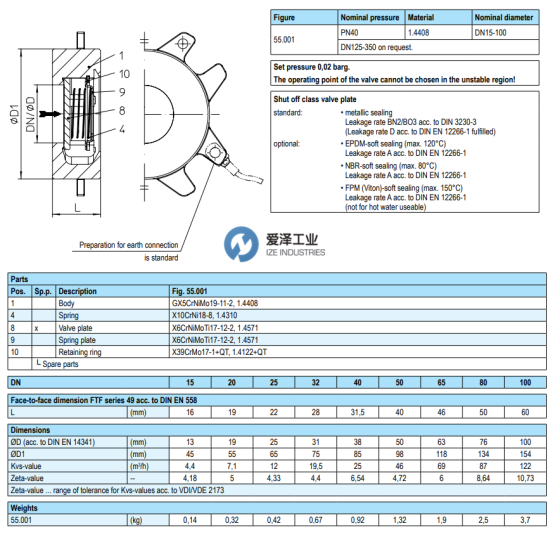

Figure | Nominal pressure | Material | Nominal diameter | |||||||
55.001 | PN40 | 1.4408 | DN15-100 | |||||||
DN125-350 on request. | ||||||||||
Parts | ||||||||||
Pos. | Sp.p. | Description | Fig. 55.001 | |||||||
1 | Body | GX5CrNiMo19-11-2, 1.4408 | ||||||||
4 | Spring | X10CrNi18-8, 1.4310 | ||||||||
8 | x | Valve plate | X6CrNiMoTi17-12-2, 1.4571 | |||||||
9 | Spring plate | X6CrNiMoTi17-12-2, 1.4571 | ||||||||
10 | Retaining ring | X39CrMo17-1+QT, 1.4122+QT | ||||||||
└ Spare parts | ||||||||||
DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
Face-to-face dimension FTF series 49 acc. to DIN EN 558 | ||||||||||
L | (mm) | 16 | 19 | 22 | 28 | 31,5 | 40 | 46 | 50 | 60 |
Dimensions | ||||||||||
?D (acc. to DIN EN 14341) | (mm) | 13 | 19 | 25 | 31 | 38 | 50 | 63 | 76 | 100 |
?D1 | (mm) | 45 | 55 | 65 | 75 | 85 | 98 | 118 | 134 | 154 |
Kvs-value | (m3/h) | 4,4 | 7,1 | 12 | 19,5 | 25 | 46 | 69 | 87 | 122 |
Zeta-value | -- | 4,18 | 5 | 4,33 | 4,4 | 6,54 | 4,72 | 6 | 8,64 | 10,73 |
Zeta-value ... range of tolerance for Kvs-values acc. to VDI/VDE 2173 | ||||||||||
Weights | ||||||||||
55.001 | (kg) | 0,14 | 0,32 | 0,42 | 0,67 | 0,92 | 1,32 | 1,9 | 2,5 | 3,7 |
ARI閥CHECKO-D 55.001技術數據
