HUNGER密封圈FI系列介紹
HUNGER FI 型軸承環主要用于活塞桿。在桿和外殼之間提供導向和承載表面，防止它們之間的金屬接觸。
FI 型由極耐磨和低摩擦的 POM-PTFE 青銅復合材料制成?？捎糜谝缘V物油為基礎的液壓油、水油乳液、防火液體以及壓縮空氣。

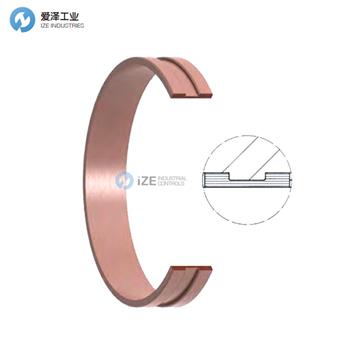

它具有 U 形截面，并且采用帶斜切接頭的分體設計?？梢韵騼?nèi)螺旋壓縮，以便適應桿的外殼，在相應的安裝槽中恢復到原形。軸承槽的排列可以防止其軸向移動。
HUNGER 軸承環可以作為單個環或多個相鄰排列的環使用。軸承環的數量取決于預計的側向載荷。相鄰軸承的接頭應錯開。
由于其出色的干運行特性，F(xiàn)I 型軸承環也可以應用于壓力側對面的桿密封之后。
備注
兩個直接相鄰的軸承環之間須提供 1 毫米的間距。（例外情況：帶金屬腔的密封支撐軸承，壓力超過 360 bar）
描述
軸承環，內部軸承
用于所有液壓缸，具有最佳的承載性能并且安裝簡單
溫度范圍（°C）：-55...+120
速度（m/s）：3
HUNGER bearing ring type FI is mainly used on piston rods. It provides guiding and bearing surfaces between rod and housing and prevents metal to metal contact between them.
The FI consists of an extremely abrasion-resistant and low-friction POM-PTFE Bronze compound. It can be used for hydraulic oil with a mineral oil base, for water-oil emulsions and for fire-resistant fluids as well as compressed air.
It has a U-shaped cross-section and is split with an angled butt joint. It can be spirally compressed inwards for ftting into the rod housing where it springs back out into corresponding installation grooves. The bearing groove arrangement secures it against axial movement.
The HUNGER bearing rings can be used as single rings or multiple rings arranged adjacent to each other. The number of bearing rings depends on the expected side loads. The butt joints in adjacent bearings should be staggered.
Due to its excellent dry running properties the bearing ring FI can also be applied behind a rod seal opposite the pressure side.
Remark
A distance of 1 mm has to be provided between two bearing rings arranged directy next to each other. (Exception: seal supporting Bearing over 360 bar with metllic chambering)
Description
Bearing Ring, inside bearing
use in all hydraulic cylinders, optimum bearing and simple installation
Temp.-range(°C):-55...+120
peed(m/s):3
HUNGER密封圈FI系列常用型號：
HUNGER FI_90X24 POM4
HUNGER FI_95X24 012037
HUNGER FI_96X24 019803
HUNGER FI_100X19 019808
HUNGER FI_85X24 012034
HUNGER FI_83X24 019802
HUNGER FI_80X24 012032
HUNGER FI_78X24 023323
HUNGER FI_75X24 012030
HUNGER FI_73X24 023322
HUNGER FI_72X24 012029
HUNGER FI_70X24 012028
HUNGER FI_65X24 012026
HUNGER FI_63X24 012025
HUNGER FI_660X24 012024
