AVENTICS止回閥0821200207技術參數
Specifications | |
Port 1 | G 1/2 |
Port 2 | G 1/2 |
Throttle bore ? | 10 mm |
direction of throttle | 2 > 1 |
Nominal flow Qn 2 to 1 | 2691 l/min |
Compressed air connection type 1 | Internal thread |
Compressed air connection type 2 | External thread |
Throttle | Exhaust Air Throttling |
Medium | Compressed air |
Working pressure min. | 0.5 bar |
Working pressure max | 10 bar |
Min. ambient temperature | -10 °C |
Max. ambient temperature | 70 °C |
Min. medium temperature | -10 °C |
Max. medium temperature | 70 °C |
Housing material | Aluminum, anodized |
Material flow control screw | Brass |
Seal material | Acrylonitrile butadiene rubber |
AVENTICS止回閥CC02-AL系列介紹
止回節流閥，CC02-AL 系列
- Qn 2?1 = 68-2691 l/min
- 節流閥方向 2 ? 1
- 排氣節流
- 內螺紋 / 外螺紋

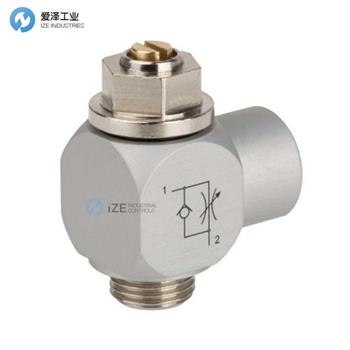

Check-choke valve, Series CC02-AL 0821200207
Check-choke valve, Series CC02-AL
- Qn 2?1 = 68-2691 l/min
- direction of throttle 2 ? 1
- exhaust air throttling
- Internal thread / External thread
AVENTICS止回閥CC02-AL系列其他常用型號：
AVENTICS R412004833
AVENTICS 0821200204
AVENTICS 0821200205
AVENTICS 0821200206
AVENTICS 0821200207
AVENTICS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS止回閥0821200207的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AVENTICS止回閥0821200207技術參數及介紹
