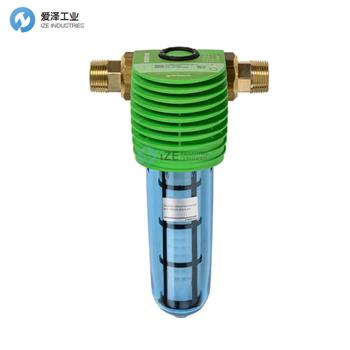

GRUNBECK過濾器BOXER KX 1系列技術參數
specifications | |
Nominal flow at ?p 0.2 (0.5) bar m3/h | 3.7 (6.0) |
KV value m3/h | 8.4 |
Pore size μm | 100 |
Largest/smallest pore size μm | 120/80 |
Operating pressure bar | 2 – 16 |
Nominal pressure | PN 16 |
Water temperature °C | 5 – 30 |
Ambient temperature °C | 5 – 40 |
Nominal connection diameter | DN 25 |
Connection diameter | 1" |
Empty weight kg | 1.9 |
GRUNBECK過濾器BOXER KX系列介紹
BOXER KX 精濾器專為飲用水過濾而設計。BOXER KX 精濾器根據 DIN EN 13443-1 和 DIN 19628 的規格設計，旨在根據 DIN EN 806-2 安裝到飲用水系統中（安裝在水表系統的下游）。它們保護水管和連接的輸水系統部件免受未溶解雜質（顆粒）的干擾和腐蝕損壞，例如鐵銹顆粒、沙子等。
? 連接法蘭，包括水表螺絲連接件（采用抗脫鋅黃銅制成），帶密封件和不銹鋼螺絲
? 支撐織物采用高級塑料制成，可長期使用
? 維護環，用于設置下次維護日期（更換過濾器）
? 透明藍色濾筒，可用手?jǐn)Q緊
? 可更換濾芯，采用聚酯織物制成（標準版本過濾精度為 100 μm；可改裝為 80 μm、50 μm、20 μm 和 5 μm）
? 所有與水接觸的部件均符合德國飲用水條例。測試規定：KTW、DVGW W 270、DIN 50930-6
? 所有材料均可回收利用
The BOXER KX fine filters are designed for the filtration of drinking water. The BOXER KX fine filters are designed according to the specifications of DIN EN 13443-1 and DIN 19628 and are intended for installation into the drinking water system according to DIN EN 806-2 (installation immediately downstream of the water meter system). They protect the water pipes and connected water-carrying system parts from disturbances and corrosion damage due to undissolved impurities (particles), such as rust particles, sand, etc.
? Connection flange incl. water meter screw connections (made of dezincification-resistant brass) with seals and stainless steel screws
? Supporting fabric made of high-grade plastic for long-term use
? Maintenance ring for setting the next maintenance date (filter change)
? Transparent blue filter cylinder that can be tightened by hand
? Replaceable filter cartridge made of polyester fabric (filter fineness 100 μm in the standard version; 80 μm, 50 μm, 20 μm and 5 μm retrofitting possible)
? All water contacting parts comply with the German Drinking Water Ordinance. Test regulations: KTW, DVGW W 270, DIN 50930-6
? All materials are recyclable
GRUNBECK過濾器BOXER系列其他常用型號：
GRUNBECK BOXER KX 1"
GRUNBECK BOXER KX 3/4"
GRUNBECK BOXER KX 1 1/4"
GRUNBECK BOXER KDX 1"
GRUNBECK BOXER KDX 3/4"
GRUNBECK BOXER KDX 1 1/4"
