AVENTICS閥R422002211技術參數
Specifications | |
Activation | Mechanical |
Nominal flow Qn | 280 l/min |
Switching principle | 3/2 |
Compressed air connection output | G 1/8 |
Working pressure min. | -0.95 bar |
Working pressure max | 10 bar |
Actuating element | panel installation |
Sealing principle | metal/metal sealing |
Type | Spool valve |
Plate connection | Pipe connection |
Lock type | not lockable |
actuating force min. | 11 N |
Min. ambient temperature | -15 °C |
Max. ambient temperature | 80 °C |
Min. medium temperature | -15 °C |
Max. medium temperature | 80 °C |
Medium | Compressed air |
Oil content of compressed air min. | 5 mg/m3 |
Oil content of compressed air max. | 25 mg/m3 |
Max. particle size | 5 μm |
Compressed air connection type | Internal thread |
Compressed air connection input | G 1/8 |
Compressed air connection, exhaust | G 1/8 |
Mounting screw | M4 with hexagon socket |
Mounting screw tightening torque | 2.5 Nm |
AVENTICS閥R422002211產品介紹
AVENTICS? 3/2 方向閥，ST系列 R422002211
特點
? 不銹鋼外殼
? 金屬對金屬密封
? 提供各種機械驅動控制
? 面板安裝

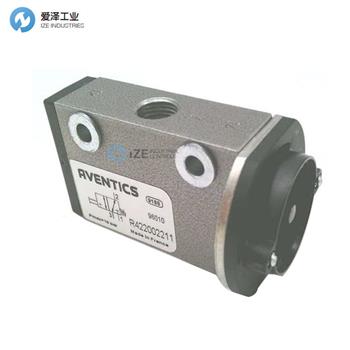

AVENTICS? 3/2-directional valve, Series ST R422002211
Features
? Stainless steel housing
? Metal to metal sealing
? Various mechanical actuating controls available
? Panel installation
AVENTICS閥ST系列其他常用型號：
AVENTICS 0820402001
AVENTICS 0820402002
AVENTICS 0820402003
AVENTICS 0820402004
AVENTICS 0820402005
AVENTICS 0820402016
AVENTICS 0820402017
AVENTICS 0820402019
AVENTICS R422002211
AVENTICS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS閥R422002211的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
