VONBERG泄壓閥55T系列技術參數
Specifications | |
INTERNAL LEAKAGE | 5 DROPS/MIN. MAX. |
OPERATING PRESSURE | 5000 PSI |
RELIEF SETTING RANGE | 500 - 5000 PSI |
RELIEF TOLERANCE | +/- 10% |
STANDARD CRACK PRESSURE | 25 PSI |
TEMPERATURE RANGE | 250°F TO -40°F |
VONBERG泄壓閥55T系列介紹
描述
一種 cartridge 風格的三通閥、先導開啟的平衡閥，具有內部通風的彈簧腔和自由反向流動止回閥，旨在用于運動控制和超中心負載保持應用。
操作
端口（2）的背壓加到溢流設定值上。
流量從（1）到（2）在溢流壓力設定值未超出之前被阻斷。
流量從（1）到（2）在施加與負載壓力成反比例的先導壓力之前被阻斷。
流量從（2）到（1）以25 PSI的標準開裂壓力被允許。
特點
可提供高達10:1的先導比（更高的先導比可能會降低流量能力）。
低溢流滯后。
安靜、穩定的操作。
密封的先導活塞，內部泄漏低。
帶鎖緊螺母可調。
順時針調整以增加溢流設定。
55T17的設定值限制為4000 PSI。
Description

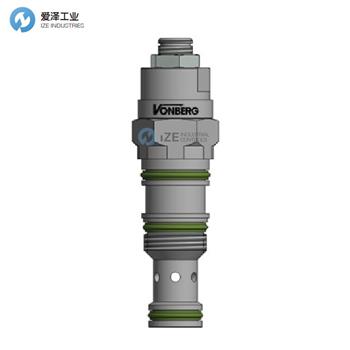

A CARTRIDGE STYLE, THREE PORT, PILOT TO OPEN COUNTERBALANCE VALVE WITH AN INTERNALLY VENTED SPRING CHAMBER AND FREE REVERSE FLOW CHECK, INTENDED FOR MOTION CONTROL AND OVER-CENTER LOAD HOLDING APPLICATIONS.
Operation
BACK PRESSURE AT PORT (2) IS ADDITIVE TO RELIEF SETTING.
FLOW FROM (1) TO (2) IS BLOCKED UNTIL THE RELIEF PRESSURE SETTING HAS BEEN EXCEEDED.
FLOW FROM (1) TO (2) IS BLOCKED UNTIL A PILOT PRESSURE INVERSELY PROPORTIONAL TO THE LOAD PRESSURE IS APPLIED TO THE PILOT PORT.
FLOW FROM (2) TO (1) IS ALLOWED WITH A STANDARD CRACK PRESSURE OF 25 PSI.
Features
PILOT RATIOS UP TO 10:1 AVAILABLE (HIGHER PILOT RATIOS MAY REDUCE FLOW CAPACITY)
LOW RELIEF HYSTERESIS.
QUIET, STABLE OPERATION.
SEALED PILOT PISTON, LOW INTERNAL LEAKAGE.
ADJUSTABLE WITH LOCKING NUT.
CLOCKWISE ADJUSTMENT TO INCREASE RELIEF SETTING.
THE 55T17 IS LIMITED TO A 4000 PSI SETTING
VONBERG泄壓閥其他常用型號：
VONBERG 55T11-3-1500
VONBERG 55T163
VONBERG 55T2
VONBERG 55T17
