WATER HYDRAULICS泵P3系列技術參數
Specification | |
Displacement (cc/rev) | Max: 3.0 |
Max. RPM | Unboosted: 1800 |
Construction Materials | A.I.S.I 316, Polymer & Martensitic Stainless steel |
Max. Input Power (kW) | 1.75 |
Max. Water Flow (l/min) | 6 |
Max. Cont. Pressure (Bar) | 160 |
Weight (kg) | 1.9 |
Temperature (°C) | Max: 50 |
WATER HYDRAULICS泵P3系列介紹
Janus P3 軸向柱塞泵專為使用自來水而設計,排量為 3.0cc/rev 和 3.0cc/rev。
該裝置的最大工作壓力為 160 bar (2320 PSI),提供 2 端口非增壓和 3 端口增壓設計,從泵軸上看,旋轉方向均為順時針或逆時針。
為避免任何污染,Janus 軸向柱塞泵完全無油,使用水作為冷卻劑/潤滑劑。

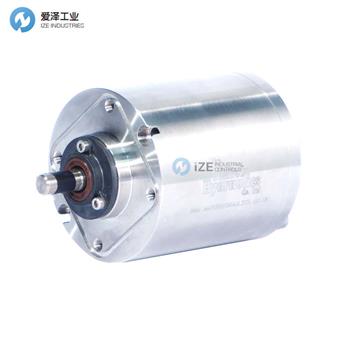

The Janus P3 axial piston pump is designed for operation on tap water and are available in displacements of 3.0cc/rev & 3.0cc/rev.
The maximum operating pressure of the unit is 160 bar (2320 PSI) and is available are 2 port un-boosted & 3 port boosted design both with a direction of rotation clockwise or anticlockwise viewed on the pump shaft.
To avoid any contamination the Janus axial piston pumps are completely oil free and operate with water as their coolant / lubricant.

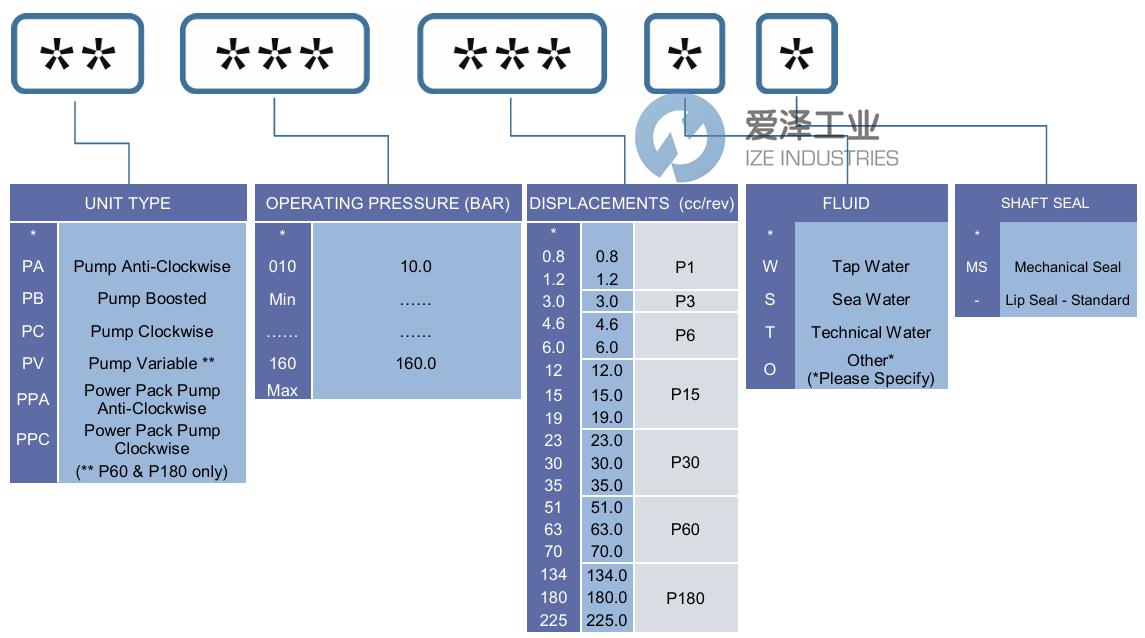

WATER HYDRAULICS泵P3系列選型
WATER HYDRAULICS泵P3系列其他常用型號:
WATER HYDRAULICS PB160-6.0W
WATER HYDRAULICS PB160-4.6W
WATER HYDRAULICS PB160-12W
WATER HYDRAULICS PB160-15W
WATER HYDRAULICS PB160-19W
WATER HYDRAULICS PB160-23W
WATER HYDRAULICS PB160-30W
WATER HYDRAULICS PB160-35W
WATER HYDRAULICS PPB160-3.0W
WATER HYDRAULICS PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WATER HYDRAULICS泵PPB160-3.0W的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for WATER HYDRAULICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
WATER HYDRAULICS泵P3系列PPB160-3.0W技術參數及選型
