BIERI泵MRK701-4x0,76-700-V-C*00技術參數
Technical Data | |
Hydraulic fluid | mineral oil according to DIN 51524 (other fluids on request) |
Fluid temperature range | -20 to 80 °C |
Ambient temperature range | -30 to 50 °C |
Viscosity range | 5 to 220 mm2/s |
Max. operating pressure | 700 bar |
Operating pressure suction side | -0.2 bar to 0.5 bar gauge pressure (up to 5 bar on request) |
Displacement volume | 0.16 to 3.62 cm3/rev |
Filtration (recommendation) | according to NAS 1638 class 6 resp. ISO/DIN 4406 17/15/12 |
Axial force onto driving shaft | can’t be taken up |
Radial force onto driving shaft | on request |
Max. rotation speed | 2000 rpm |
Direction of rotation | any |
Suction height | max. 500 mm |
Materials | pressure flange: steel |

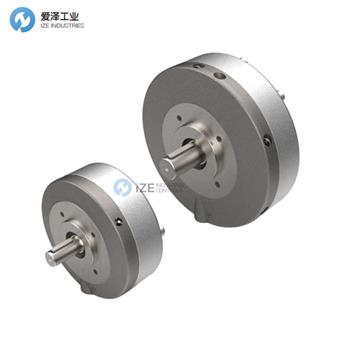

BIERI泵MRK系列介紹
BIERI 徑向活塞泵 MRK 是非常堅固的徑向設備，具有各種壓力出口，例如： 適用于不同的同步液壓運動。
特點
? 高容積效率
? 自排氣和自吸
? 可應要求在同一臺泵中提供具有不同排量的出口
BIERI radial pistion pumps MRK are very robust radial devices with various pressure outlets, e.g. for different simultaneous hydraulic motions.
Features
? High volumetric efficiency
? Self-venting and priming
? Outlets with different displacements in the same pump possible on request
? Pulsations are minimized

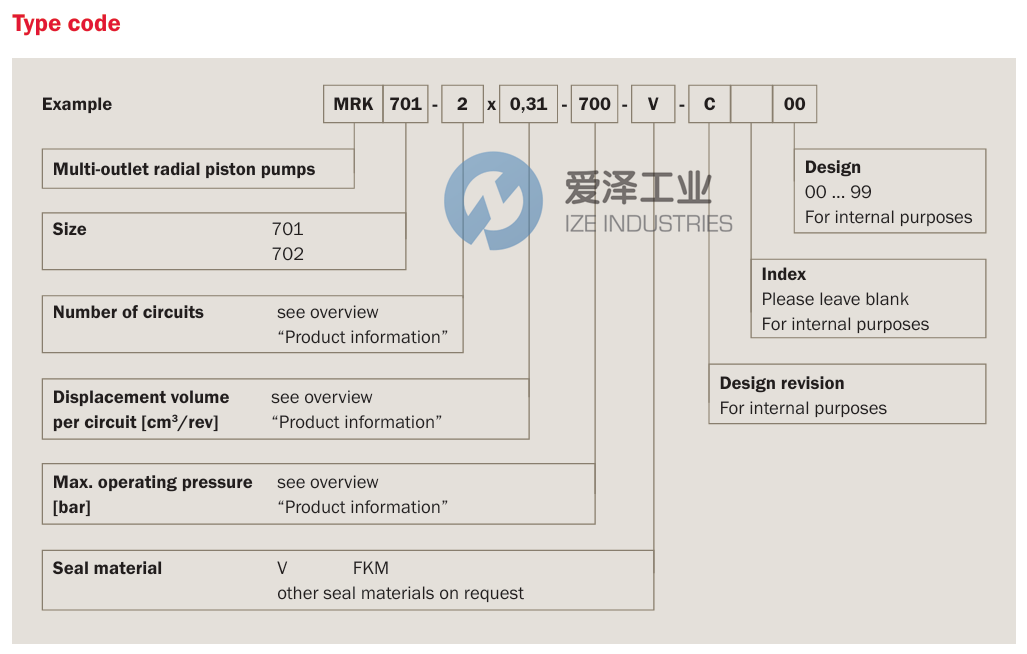

BIERI泵MRK系列選型
BIERI泵MRK系列其他常用型號：
BIERI MRK701-2x0,45-700-V-C*00
BIERI MRK701-2x0,63-700-V-C*00
BIERI MRK701-2x0,80-700-V-C*00
BIERI MRK701-2x1,02-700-V-C*00
BIERI MRK701-2x1,26-700-V-C*00
BIERI MRK701-2x1,53-700-V-C*00
BIERI MRK701-2x1,81-700-V-C*00
BIERI MRK701-2x1,88-700-V-C*00
BIERI MRK701-2x2,71-700-V-C*00
BIERI MRK701-3x0,40-700-V-C*00
BIERI MRK701-3x0,80-700-V-C*00
BIERI MRK701-3x1,14-700-V-C*00
BIERI MRK701-3x1,81-700-V-C*00
BIERI MRK701-4x0,16-700-V-C*00
BIERI MRK701-4x0,23-700-V-C*00
BIERI MRK701-4x0,40-700-V-C*00
BIERI MRK701-4x0,51-700-V-C*00
BIERI MRK701-4x0,63-700-V-C*00
BIERI MRK701-4x0,76-700-V-C*00
BIERI MRK701-4x0,90-700-V-C*00
