GOULDS泵3410 2X3-11技術參數
Pump Size | 2x3-11 |
Weight, Bronze Fitted Bare Pump | 330 (150) |
Weight, Upper Hall Casing | 63 (29) |
Weight, BF Rot. Element | 70 (32) |
Minimum Wall Thickness | 3/8 (10) |
Max. Dia. Spherical Solids | 5/16 (8) |
Casing Cap Gal. (L) | 1.7 (6.4) |
Stuffing Box Bore | 2-1/2 (64) |
Stuffing Box Depth to Bushing | 2-5/8 (67) |
Packing Size | 3/8 x 3/8 (10 x 10) |
No. of Packing Rings | 5 |
Width of Lantern Ring | 5/8 (16) |
Dia. of Shaft in Impeller | 1-13/16 (46) |
Dia. of Shaft in Sleeve | (w/ Optional Sleeve)* 1-1/2 (33) |
Dia. of Shaft in Coupling | 1-3/8 (35) |
O.D. of Shaft Sleeve | (w/ Optional Sleeve) 1-3/4 (45) |
Bearing Span | 20-1/8 (511) |
Bearing Coupling End | 6207 |
Bearing Thrust End | 5306 |
Max. BHP per 100 RPM | 9.72 (7.25 kW) |
Max. Allow. Suct. Press. | 75 PSIG (527 kPA) |
Parting Gasket Thickness | 1/32 (8) |
Max. Liquid Temp. w/o cooling | 250°F (121°C) |
Max. Liquid Temp. w/cooling | 350°F (177°C) |

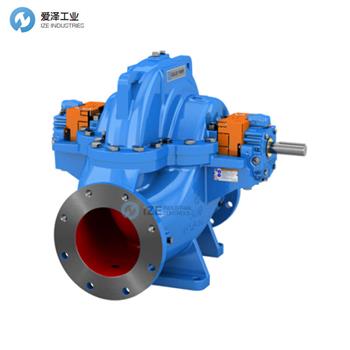

GOULDS泵3410系列介紹
雙吸泵專為廣泛的工業、市政和海洋服務而設計。
設計特點
? 雙吸/雙蝸殼設計確保軸向和徑向平衡，使用壽命長，維護成本低。
? 水平分割殼體 吸入和排出噴嘴位于下半殼體中，便于檢查/維護。
? 耐磨環 易于更換的耐磨環可防止葉輪、殼體磨損。
? 密封靈活性 可選擇填料或各種機械密封。
? 最大零件互換性 整個生產線僅使用四個旋轉組件（不包括葉輪和耐磨環）。
Double Suction Pumps Designed for a Wide Range of Industrial, Municipal, and Marine Services.
Design Features
? Double Suction/Dual Volute Design assures axial and radial balance for long life, low maintenance.
? Horizontally Split Casing Suction and discharge nozzles in lower half casing for ease of inspection/maintenance.
? Wear Rings Easily replaceable wear rings protect against impeller, casing wear.
? Sealing Flexibility Choice of packing or wide range of mechanical seals.
? Maximum Parts Interchangeability Entire line uses just four rotating assemblies (exclusive of impellers and wear rings).
GOULDS泵3410系列其他常用型號：
GOULDS 3410 2x3-11
GOULDS 3410 3x4-10
GOULDS 3410 4x6-9
GOULDS 3410 4x6-11/H
GOULDS 3410 4x6-13/H
GOULDS 3410 4x6-15
GOULDS 3410 6x8-11
GOULDS 3410 6x8-14/H
GOULDS 3410 6x8-17
GOULDS 3410 8x10-11
GOULDS 3410 8x10-12
GOULDS 3410 8x10-14
