EPOLL蓄能器AMS1P250CW4VM-0規格描述
Series | AMS= Diaphragm accumulator |
Nominal capacity | 1= 1 lt |
Diaphragm material | P= Diaphragm material |
Max working pressure (PS) | 250 |
Max working pressure (PS) | C= Carbon steel |
Fluid port connection | W= BSP ISO 228 Female and metric male M33x1.5 |
Dimension of connection side | 4= G (for capacity 0.075 ÷ 2,8 lt) 1/2” |
Gas side connection | VM= Standard filling valve thread M28x1.5 |
Test and certification | 0= Factory testing |
EPOLL蓄能器AMS系列介紹
描述
焊接式隔膜蓄能器無法維修，因為它們是專門為高數量和經濟應用而設計的，在這些應用中，更換設備比翻新設備更為實用。這些蓄能器由高強度合金鋼制成的外殼和焊接電子束組成。
柔性隔膜提供出色的氣體和流體分離。隔膜有兩種化合物：
-“P”腈（NBR）
-“Y”海德林（ECO）
-“B”=丁基（IIR）
-“V”=氟碳（FKM）
當蓄能器完全放電時，按鈕會關閉流體端口，以防止隔膜擠壓。
流體端口提供兩種類型的連接：
- “G” BSP UNI228 母頭
- “W” BSP UNI228 母頭和外部公制公頭
氣閥有兩種版本：
- “VT” 固定預充
-“VM” 公制 M28x1.5 氣閥，無泄漏。它提供了檢查或充電蓄能器的靈活性（參見 PCM 型充電套件）。
這種堅固的氣閥具有帶密封墊圈的內部六角鎖定螺釘。
AMS 型隔膜蓄能器優選用作以下領域的減震器和脈動阻尼器：工業、機床、家具和農業。
與其他類型的蓄能器相比，隔膜蓄能器具有最高的能量密度（能量含量/質量）。此特性歸因于蓄能器殼體的球形。
對于隔膜蓄能器，您可以選擇任何類型的安裝。但是，首選組裝是垂直組裝。
Description

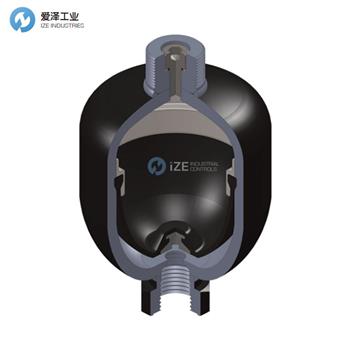

The welded type diaphragm accumulators cannot be repaired, as they are specially designed for high quantity and economical applications, where it is more practical to replace the unit rather than refurbishing it. These accumulators consist of a shell manufactured with a high strength alloy steel and a welded electron-beam.
The flexible diaphragm provides excellent gas and fluid separation. Dia- phragm are available in two compounds:
- “P” nitrile (NBR)
- “Y” hydrin (ECO)
– “B” = Butyl (IIR)
- “V” = Fluorocarbon (FKM)
The button closes the fluid port when the accumulator is fully discharged to prevent diaphragm extrusion.
The fluid port is available provided with two types of connections:
- “G” BSP UNI228 female
- “W” BSP UNI228 female and external metric male
The gas valve is available in two versions:
- “VT” fixed pre-charge
-“VM” metric M28x1.5 gas valve and leak-free. It offers flexibility of chec- king or charging the accumulator (see charging kit type PCM).
This rugged gas valve features an internal hexagonal locking screw with sealing washer.
Diaphragm accumulators type AMS are then preferably used as shock absorbers and pulsation dampeners in the following sectors: industrial, machine tools, furniture and agriculture.
Compared to other accumulator types, the diaphragm ones have the hi- ghest energy density (energy content / mass). This feature is due to the spherical shape of the accumulator shell.
For the diaphragm accumulators, you can choose any type of installation. The preferred assembly is, however, the vertical one.
EPOLL蓄能器AMS系列其他常用型號：
EPOLL AMS1,4P210CW4VM-8/30
EPOLL AMS1,4P350CW4VM-0/30
EPOLL AMS1P250CW4VM-0/30
EPOLL AMS1P350CW4VM-0/30
EPOLL AMS1P250CW4VM-0
