REXROTH OIL CONTROL閥VSO-DE系列技術參數
Technical data | |
Operating pressure | up to 210 bar (3000 psi) |
Max. flow | 100 l/min. (26 gpm) |
Pilot ratio | 4 : 1 |
Weight | 2.6 kg (5.7 lbs) |
Manifold material | Aluminium |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. | |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
The version with O-Ring and heavier spring is generally recommended. | |

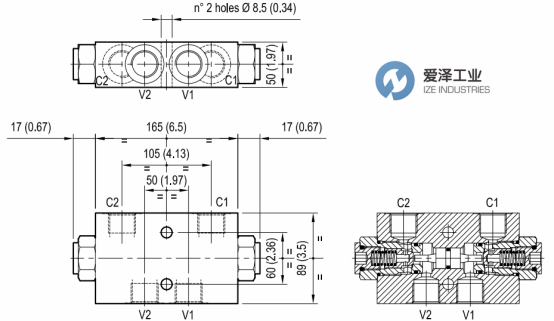

REXROTH OIL CONTROL閥VSO-DE系列技術尺寸

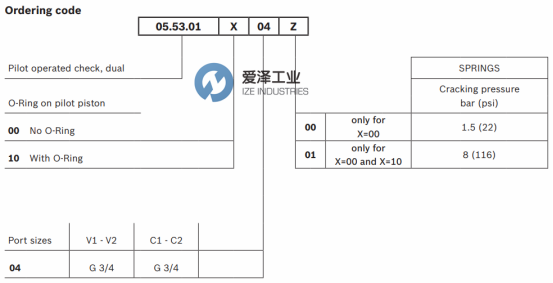

REXROTH OIL CONTROL閥VSO-DE系列選型
REXROTH OIL CONTROL閥VSO-DE系列其他常用型號：
REXROTH OIL CONTROL 055301000400000 R930002396
REXROTH OIL CONTROL 055301000401000 R930002397
REXROTH OIL CONTROL 055301100401000 R930002403

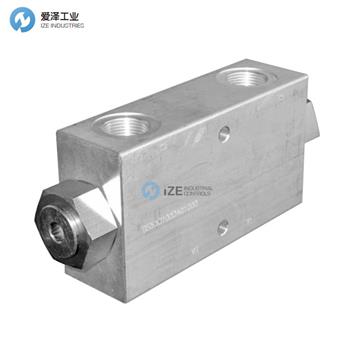

REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥055301000400000 R930002396的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥055301000400000 R930002396技術數據
