REXROTH OIL CONTROL閥VBSN-12U-RS系列技術參數
Technical data | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min. (gpm) | 120 (32) |
Max. internal leakage (*) drops/min. | 15 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 60-70 (44-52) |
Weight kg (lbs) | 0.37 (0.82) |
Cavity | SUN T-2A |
Seal kit | code: RG12U9020110100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |

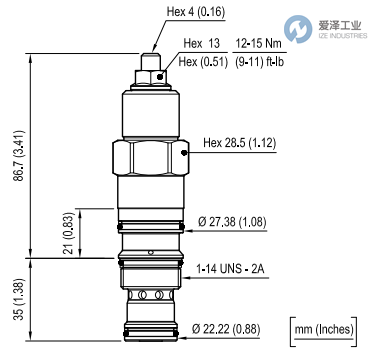

REXROTH OIL CONTROL閥VBSN-12U-RS系列技術尺寸

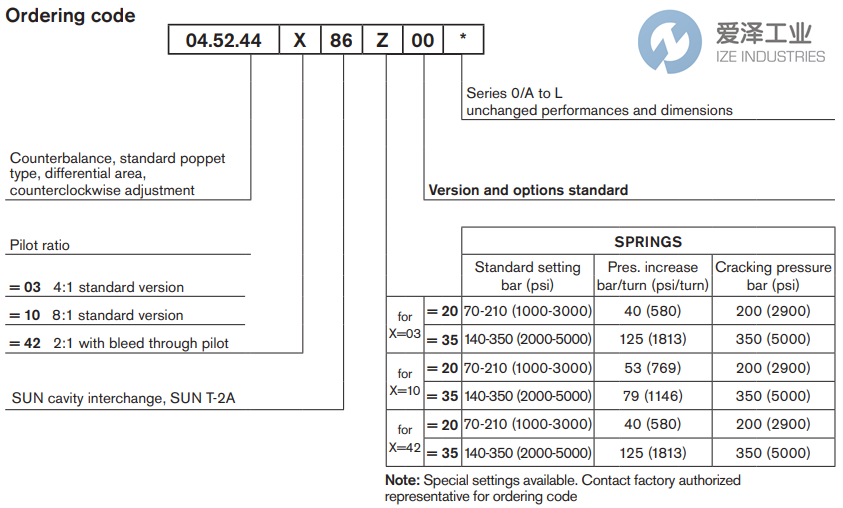

REXROTH OIL CONTROL閥VBSN-12U-RS系列選型
REXROTH OIL CONTROL閥VBSN-12U-RS系列其他常用型號：
REXROTH OIL CONTROL 045244038620000 R930006116
REXROTH OIL CONTROL 045244038635000 R930006117
REXROTH OIL CONTROL 045244108620000 R930006118
REXROTH OIL CONTROL 045244108635000 R930006119
REXROTH OIL CONTROL 045244428620000 R930006120
REXROTH OIL CONTROL 045244428635000 R930006121
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥045244038635000 R930006117的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥045244038635000 R930006117技術參數及選型
