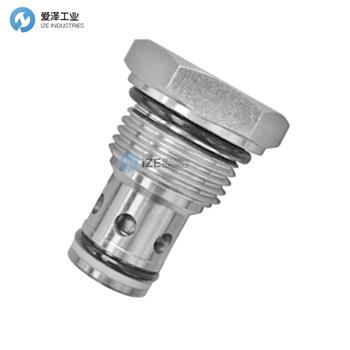

REXROTH OIL CONTROL閥VUCN-10A系列規格描述
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min. (gpm) | 80 (21) |
Max. internal drops/min. leakage | 5 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 41-47 (30-35) |
Weight kg (lbs) | 0.15 (0.33) |
Cavity | CA-10A-2N |
Seal kit (*) mat code erial no. | RG10A2010520100 R901111363 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 15 to 800 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |

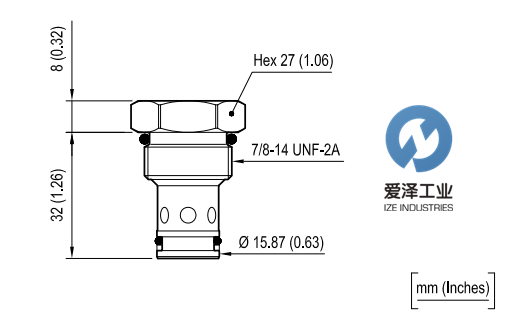

REXROTH OIL CONTROL閥VUCN-10A系列外觀尺寸圖

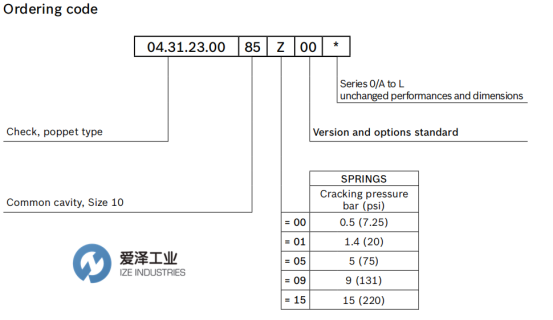

REXROTH OIL CONTROL閥VUCN-10A系列選型
REXROTH OIL CONTROL閥VUCN-10A系列其他常用型號：
REXROTH OIL CONTROL 043123008500000 R901106596
REXROTH OIL CONTROL 043123008501000 R930005884
REXROTH OIL CONTROL 043123008505000 R901106601
REXROTH OIL CONTROL 043123008509000 R930000962
REXROTH OIL CONTROL 04312300851500A R901106602
REXROTH OIL CONTROL INLINE CHECK VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥04312300851500A R901106602的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥04312300851500A R901106602技術數據
